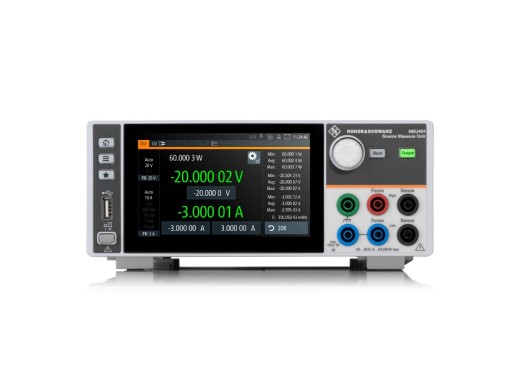

The Rohde & Schwarz NGU401 is a 4 quadrant source measure unit (SMU).
This SMU can handle up to 60W.
With its 4-quadrant architecture, it can also deal with both positive and negative supply voltages and can act as a source or sink in both polarities.
With a display resolution of 6.5 digits, the NGU401 is able to provide high accuracy and output resolutions of up to 1µV/100pA.
It also has an acquisition rate of up to 500000 samples per second, allowing for fast variations in voltage or current to be captured.
The SMU can also provide a fast load recovery time of <30µs combined with minimum overshoot even during a demanding load change.
The NGU401 power supply also has voltage, current, power and temperature protection (OVP, OCP, OPP, OTP) with the voltage, current and power protection being adjustable.
The power supply has a QuickArb function, with which the time/current flow or time/voltage curve can be programmed and an EasyRamp function, to simulate continuously increasing operating conditions within a given time frame.
Furthermore, all this information is displayed on a 5" high-resolution color touchscreen and can be remotely controlled through USB or LAN connections.
Note: this product is also available in the NGU401COM bundle, which includes a digital trigger I/O.
Model overview
| Models |
NGU201
|
NGU401
|
NGU411
|
|---|
| Number of quadrants | 2 | 4 | 4 |
| Maximum voltage | 20 V | ±20 V | ±20 V |
| Maximum current | 8 A | 8 A | 2 A |
| Maximum power | 60 W | 60 W | 20 W |
| Price |
7800
€7,800.00
Excl. VAT
|
7210
€7,210.00
Excl. VAT
|
4670
€4,670.00
Excl. VAT
|
Specifications
| Resolution | 1µ V/100 pA, 6.5 digits |
| Protection | OPP, OCP, OVP, OTP |
| Interfaces | LAN, USB |
| Display | 5" TFT |
| Dimensions | 222 x 97 x 436 mm |
| Weight | 7.1 kg |
Downloads
(9.75 MB)
