Rigol RSA814 spectrum analyser
Details

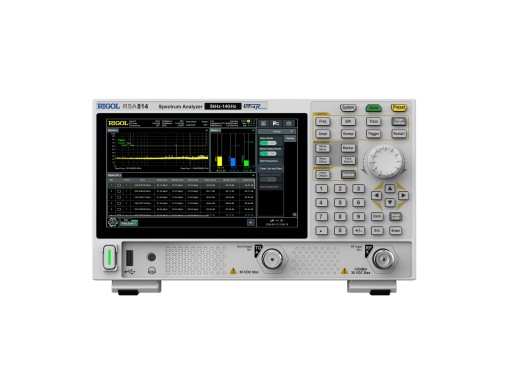

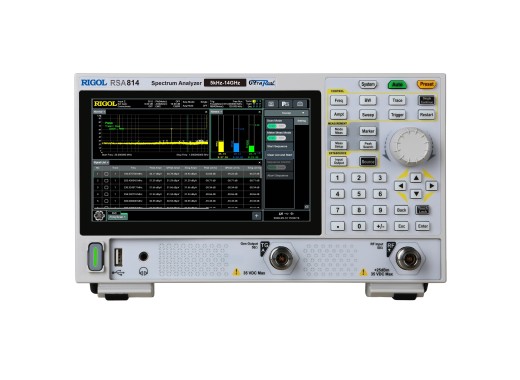

The Rigol RSA814 is a compact, real-time spectrum analyser designed for lab, education, production and field measurements. It has a bandwidth of 5kHz to 14GHz, giving users a wide RF measurement range at an accessible price point, also suitable for applications where lower-frequency signals need to be inspected. Unlike a basic sweeping analyser, the RSA814 provides 40MHz real-time bandwidth, helping you capture short-duration or intermittent signals that could otherwise be missed. This makes it useful for RF debugging, wireless device testing, education, production checks and general electronics troubleshooting. The analyser also has a built-in tracking generator with a frequency range of 100kHz to 14GHz.
The RSA814 also offers an excellent RBW range from 1Hz up to 10MHz, supporting both fine-resolution and wideband measurements. The device features LAN, USB, and HDMI interfaces, and is SCPI-compatible, making it easy to integrate into automated test suites. Finally, the spectrum analyser has an intuitive 7-inch touchscreen display.
Additionally, the RSA800 series also offers a range of software options to upgrade the spectrum analysers. For more information or help selecting options, contact us.
Model overview
| Model | RSA804 | RSA808 | RSA814 |
|---|---|---|---|
| Bandwidth | 5 kHz - 4.5 GHz | 5 kHz - 8.5 GHz | 5 kHz - 14.0 GHz |
| Price |
Specifications
| RBW | 1 Hz - 10 MHz |
| DANL | - 168 dBm/Hz |
| Amplitude accuracy | < 0.3 dB |
| Phase noise | < - 112 dBc/Hz (typ.) |
| Tracking generator | Yes |
| Interfaces | USB host/device, LAN, HDMI |
| Display | 7" HD touchscreen (1024x600) |
| Dimensions | 265.35 x 161.75 x 77.38 mm |
| Weight | 1.9 kg |
Options
| RSA800-ADM | Analog demodulation application software option | |
| RSA800-EMI | EMI measurement application software option | |
| RSA800-VSA | Vector signal analysis application software option | |
| RSA800-AMK | Advanced measurement kit | |
| RSA800-PNOISE | Phase noise measurement application software option |
For more information, contact us.
Accessories
The RSA814 comes by default with:
- USB-C power supply
Pros and cons
- Wide frequency range
- 10MHz RBW
- Built-in tracking generator
- Low DANL
- Low noise
