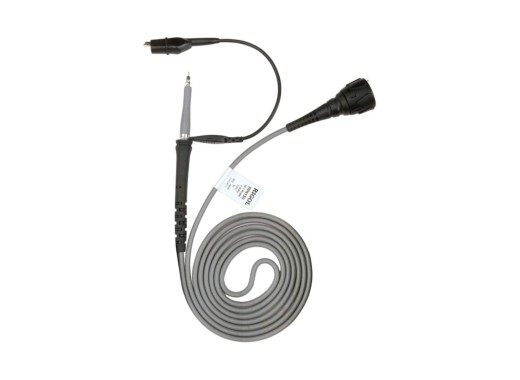

Rigol RP6150A passive probe
Details
The Rigol RP6150A is a 1.5GHz passive DC-coupled probe with 500Ω (±10Ω) input impedance and a 10:1 attenuation ratio. The RP6150A probe features a 1.4m cable, and is rated for a maximum input voltage of CAT I 7VAC.
Specifications
| Frequency Range | DC to 1.5 GHz |
| Scope input | 50Ω |
| Attenuation ratio | 10:1 |
| Input impedance | 10 MΩ |
| Maximum input voltage | CAT I 7 V DC |
| Cable length | 140 cm |
| Weight | 46 grams |
Accessories
The Rigol RP6150A probe comes with:
- 1x Ground lead (alligator clip)
- 1x Hook tip
- 1x BNC connector plug
- 8x Marker rings (4 colours, 2 per colour)
- 1x Ground spring
Downloads
| Rigol RP6150A user manual |  (1.11 MB) | Download |
