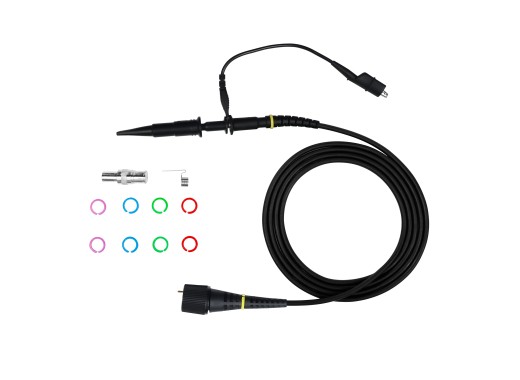

Siglent SP6150A probe
Details
The Siglent SP6150A passive probe has a bandwidth of 1.5GHz and a 10:1 attenuation ratio, making this probe suitable for a wide range of measurement needs. With the SP6150As low capacitance (1.8pF) and low inductance ground connection, it is ensured that the load placed on the system remains low enough to make high-integrity signal measurements possible. The probe has an input resistance of 500Ω, and a scope input coupling of 50Ω. The smaller 3.8mm probe tip provides better visibility while in use, and since it is a passive probe, external power sources are not required. Probes manufactured by Siglent are automatically recognized when connected to a Siglent oscilloscope.
Specifications
| Probe bandwidth | > 1.5 GHz |
| Attenuation ratio (DC) | 10:1 |
| Input resistance | 500 Ω |
| Input capacitance | 1.8 pF |
| Scope input coupling | 50 Ω |
| Max. input voltage | 8.5 V |
| Cable length | 1.3 m |
Accessories
The Siglent SP6150A comes with the following accessories:
- 1x Hook tip
- 8x Marker rings
- 1x BNC adapter
- 1x Ground lead
- 1x Ground spring
- 1.5GHz bandwidth
Pros and cons
Downloads
| Siglent SP6150A user manual |  (2.3 MB) | Download |
