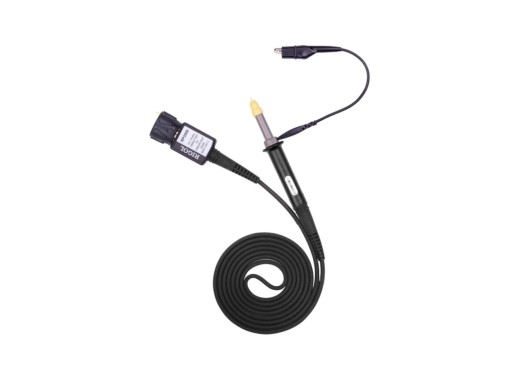

Rigol RP3500A passive probe
Details
The Rigol RP3500 is a 500MHz passive DC-coupled probe with 10MΩ input impedance and a 10:1 attenuation ratio. This probe is a HiZ-probe, designed for high impedance and ultra-low current measurements. The RP3500 probe features a 1.4m cable, and is rated for a maximum input voltage of CAT II 300V AC.
Specifications
| Frequency Range | DC to 500 MHz |
| Probe tip capacitance | 13 pF ± 3 pF |
| Input impedance | 10 MΩ |
| Attenuation ratio | 10:1 |
| Maximum input voltage | CAT II 300 V AC |
| Cable length | 140 cm |
| Weight | 60 grams |
Accessories
The Rigol RP3500A probe comes with:
- 1x Retractable hook tip
- 1x Adjustment tool
- 1x Locating sleeve
- 8x Marker rings (4 colours)
- 1x Ground lead (alligator clip)
- 2x Ground spring
Downloads
| Rigol RP3500A user manual |  (1.05 MB) | Download |
