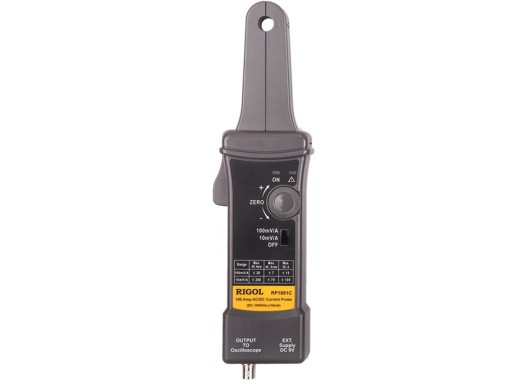

Rigol RP1001C current probe
Details
The Rigol RP1001C is a current probe designed to measure current up to 100A. The probe has a range of DC up to 300 kHz and has 2 ranges to measure current: a range up to 10A and a range up to 100A. The RP1001C can be connected to an oscilloscope or to a multimeter, using the included BNC to banana adapter.
The probe can be powered by the battery or by an adapter. The advantage of the adapter is that it can prevent measurement errors caused by poor battery life.
Specifications
| Current range | 10 mV/A, 100 mV/A |
| Resolution | ±50 mA |
| Bandwidth | DC - 300 kHz |
| Max. working voltage | 600 V |
| Max. working current | 100A (10mv/A) 10A (100mV/A) |
| Indication of overload | Yes |
| Power supply | 9 V |
| Max. diameter cable | 11 mm |
| Dimensions | 280 x 70 x 32 mm |
| Weight | 260 g |
Accessories
The Rigol RP1001C will be delivered including:
- BNC cable
- Adapter
- BNC to banana plug adapter
- User manual
Downloads
| Rigol RP1001C manual |  (915.43 KB) | Download |
