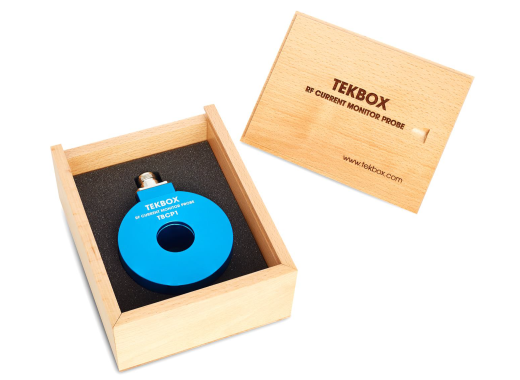

Tekbox TBCP1 25mm RF current probe (200 Mhz)
Details
The Tekbox TBCP1-200 RF current probe is designed to measure high-frequency current. The probe has a range of 10 kHz to 200 MHz and can measure high-frequency current up to 3 A. For DC and frequencies up to 400 Hz, current up to 80 A can be measured.
As you would expect from Tekbox, the TBCP1-200 RF current probe is also of excellent quality at an affordable price.
Specifications
| 3 dB bandwidth | 200 MHz |
| Frequency range | 10 kHz - 500 MHz |
| Transfer impedance | 3 - 17 dBΩ |
| Diameter opening | 25 mm |
| Type connector | N Female |
| Maximum current | 80 A (DC - 400 Hz) 3 A (RF) |
| Weight | 320 g |
Pros and cons
- High frequency range
Downloads
| Tekbox TBCP1-200 manual |  (405.28 KB) | Download |
| Tekbox TBCP probes in EMCview | (495.53 KB) | Download |
