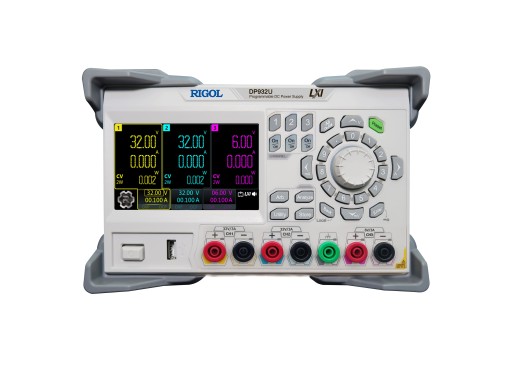

Rigol DP932U power supply
This product is temporarily reduced in price until June 30th 2024!
Details
The Rigol DP932U is a programmable three channel power supply with a maximum total output of 210 W as well as safety connectors for each channel. The first 2 channels can each provide a voltage of 0 - 32 V and a current of 0 - 3 A and for the third channel this range is from 0 - 6 V and 0 - 3 A respectively. Each channel can be indivuadlly turned on or off and it has a function to generate ARB waveforms. The standard interface options consist of USB (host and device) and LAN. These options also make it possible for the power supply to be programmed. Datalogging and other analysis methods are also available on the 4.3" LCD touch screen display.
This power supply can also be extended with a digital IO interface module, ARB waveform generation with 100 sec dwell time instead of 1000 sec and a high current/voltage resoltuion option of 1 mA and 1 mV. For these options you can contact us, price on request.
Model
| Model | DP932E | DP932U | DP932A | DP2031 |
|---|---|---|---|---|
| Power | 198 W | 210 W | 210 W | 222 W |
| Rear output terminals | No | No | No | Yes, for channel 1/2 |
| Voltage range / current range | CH1 / CH2: 0 - 30 V / 0 - 3 A CH3: 6 V / 3 A |
CH1 / CH2: 0 - 32 V / 0 - 3 A CH3: 6 V / 3 A |
CH1 / CH2: 0 - 32 V / 0 - 3 A CH3: 6 V / 3 A |
CH1 / CH2: 0 - 32 V / 0 - 3 A CH3: 6 V / 5 A |
| Resolution | CH1 / CH2: 10 mV / 10 mA | CH1 / CH2: 10 mV / 10 mA | CH1 / CH2: 1 mV / 1 mA | CH1 / CH2: 1 mV / 1 μA |
| ARB waverform generation | No | Yes with min. dwell time of 1000 msec | Yes with min. dwell time of 100 msec | Yes with min. dwell time of 1 msec |
| Interfaces | USB host/device, LAN | USB host/device, LAN | USB host/device, LAN, Digital IO | USB host/device, RS232, LAN, Digital IO |
| Price |
Specifications
| Outputs | 3 |
| Output switch | Each channel |
| Ripple | 350 μV / 2 mA |
| Analysis methods | Real-time plot, trend, current pulse analysis and datalogging |
| Protection | OCP, OVP, OTP |
| Display | 4.3" LCD touch screen |
| Dimensions | 239 x 157 x 419 mm |
| Weight | 9.15 kg |
Accessories
The Rigol DP932U power supply comes with the following accessories:
- Power cord
- One fuse
- USB cable
- Two pairs of 10 A connection cables
Pros and cons
- Programmable
- Safety connectors instead of binding posts
Video's
Downloads
| DP900 data sheet |
 (10.19 MB) |
Download |
| DP900 quick start guide |
(2.55 MB) |
Download |
| DP900 user manual |
(3.92 MB) |
Download |
