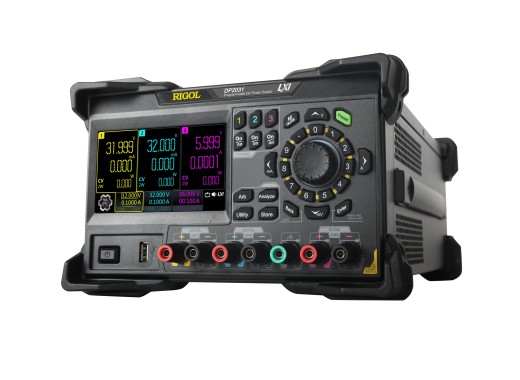

The Rigol DP2031 is a programmable three channel power supply with a maximum total output of 222 W. The first 2 channels can each provide a voltage of 0 - 32 V and a current of 0 - 3 A and for the third channel this range is from 0 - 6 V and 0 - 5 A respectively. Each channel can be indivuadlly turned on or off and there is also a rear output for channels 1 and 2. Furthermore, for this power supply a current resolution of as low as 1 µA is possible and it has a function to generate ARB waveforms. The standard interface options consist of USB (host and device), LAN, RS232 and digital IO. These options also make it possible for the power supply to be programmed. Datalogging and other analysis methods are also available on the 4.3" LCD touch screen display.
This power supply can also be extended with a GPIB interface module, channel 3 10A high range mode and 7.5 kSa/s high-speed sampling option. For these options you can contact us, price on request.
Model | DP932E | DP932U | DP932A | DP2031 |
---|---|---|---|---|
Power | 198 W | 210 W | 210 W | 222 W |
Rear output terminals | No | No | No | Yes, for channel 1/2 |
Voltage range / current range | CH1 / CH2: 0 - 30 V / 0 - 3 A CH3: 0 - 6 V / 0 - 3 A |
CH1 / CH2: 0 - 32 V / 0 - 3 A CH3: 0 - 6 V / 0 - 3 A |
CH1 / CH2: 0 - 32 V / 0 - 3 A CH3: 0 - 6 V / 0 - 3 A |
CH1 / CH2: 0 - 32 V / 0 - 3 A CH3: 0 - 6 V / 0 - 5 A |
Resolution | CH1 / CH2: 10 mV / 10 mA | CH1 / CH2: 10 mV / 10 mA | CH1 / CH2: 1 mV / 1 mA | CH1 / CH2: 1 mV / 1 μA |
ARB waveform generation | No | Yes with min. dwell time of 1000 msec | Yes with min. dwell time of 100 msec | Yes with min. dwell time of 1 msec |
Interfaces | USB host/device, LAN | USB host/device, LAN | USB host/device, LAN, Digital IO | USB host/device, RS232, LAN, Digital IO |
Price |
Outputs | 3 |
Output switch | Each channel |
Ripple | 350 μV / 2 mA |
Analysis methods | Real-time plot, trend, current pulse analysis and datalogging |
Protection | OCP, OVP, OTP |
Display | 4.3" LCD touch screen |
Dimensions | 239 x 157 x 419 mm |
Weight | 9.95 kg |
The Rigol DP2031 power supply comes with the following accessories:
DP2000 DataSheet |
(10.62 MB) | Download |
DP2000 UserGuide |
(5 MB) | Download |
DP2000 ProgrammingGuide |
(2.77 MB) | Download |
