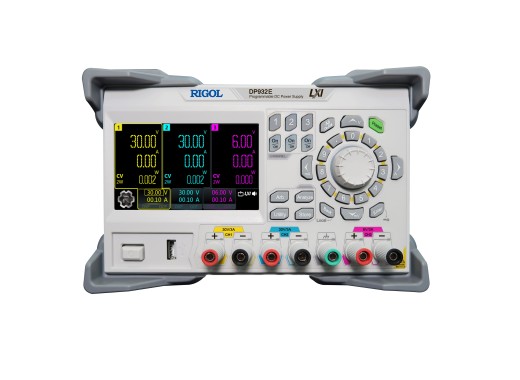

Rigol DP932E power supply
Details
The Rigol DP932E is a programmable three channel power supply with a maximum total output of 198 W. The first 2 channels can each provide a voltage of 0 - 30 V and a current of 0 - 3 A and for the third channel this range is from 0 - 6 V and 0 - 3 A respectively. Each channel can be indivuadlly turned on or off. The standard interface options consist of USB (host and device) and LAN. These options also make it possible for the power supply to be programmed. Datalogging and other analysis methods are also available on the 4.3" LCD touch screen display.
This power supply can also be extended with a high current/voltage resoltuion option of 1 mA and 1 mV. For this option you can contact us, price on request.
Model
| Model | DP932E | DP932U | DP932A | DP2031 |
|---|---|---|---|---|
| Power | 198 W | 210 W | 210 W | 222 W |
| Rear output terminals | No | No | No | Yes, for channel 1/2 |
| Voltage range / current range | CH1 / CH2: 0 - 30 V / 0 - 3 A CH3: 6 V / 3 A |
CH1 / CH2: 0 - 32 V / 0 - 3 A CH3: 6 V / 3 A |
CH1 / CH2: 0 - 32 V / 0 - 3 A CH3: 6 V / 3 A |
CH1 / CH2: 0 - 32 V / 0 - 3 A CH3: 6 V / 5 A |
| Resolution | CH1 / CH2: 10 mV / 10 mA | CH1 / CH2: 10 mV / 10 mA | CH1 / CH2: 1 mV / 1 mA | CH1 / CH2: 1 mV / 1 μA |
| ARB waverform generation | No | Yes with min. dwell time of 1000 msec | Yes with min. dwell time of 100 msec | Yes with min. dwell time of 1 msec |
| Interfaces | USB host/device, LAN | USB host/device, LAN | USB host/device, LAN, Digital IO | USB host/device, RS232, LAN, Digital IO |
| Price |
Specifications
| Outputs | 3 |
| Output switch | Each channel |
| Ripple | 350 μV / 2 mA |
| Analysis methods | Real-time plot, trend, current pulse analysis and datalogging |
| Protection | OCP, OVP, OTP |
| Display | 4.3" LCD touch screen |
| Dimensions | 239 x 157 x 419 mm |
| Weight | 9.15 kg |
Accessories
The Rigol DP932E power supply comes with the following accessories:
- Power cord
- One fuse
- USB cable
- Two pairs of 10 A connection cables
Pros and cons
- Programmable
Video's
Downloads
| DP900 data sheet |
 (10.19 MB) |
Download |
| DP900 quick start guide |
(2.55 MB) |
Download |
| DP900 user manual |
(3.92 MB) |
Download |
