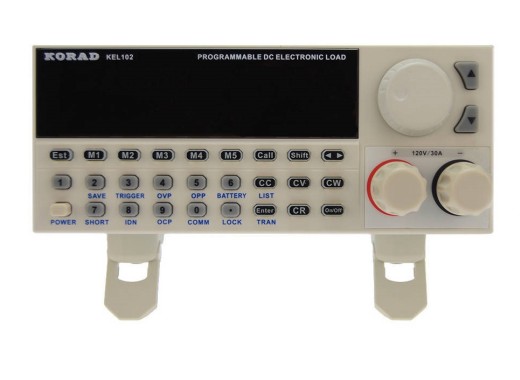

Korad KEL102 programmable DC electronic load 150W 120V 30A
Details
Excellent programmable DC electronic load with 150W of power and high resolution of 0.1 mV and 0.1 mA. The load is programmable with a PC via various interfaces such as USB and RS232. It can be used in Constant Current, Constant Voltage, Constant Resistance and Constant Power modes. The applications of an electronic load are extensive. For example, it can be used to test power supplies, but there are many other applications. For example, it can easily test how a battery works. The electronic load has 100 sets of memory to store and easily retrieve specific settings.
Specifications
| Power (max) | 150 W | |
| Current (max) | 30 A | |
| Voltage (max) | 120 V | |
| Operation modes | CC, CR, CV, CW | |
| Input impedance | 150 kΩ | |
| Resolution | ||
| CV mode | 0 - 18 V: 0.1 mV 0 - 120 V: 1 mV |
|
| CC mode | 0 - 3 A: 0.1 mA 0 - 30 A: 1 mA |
|
| CR mode | 0.05 Ω - 7.5 kΩ : 16 bit | |
| CW mode | 150 W: 0.01 W | |
| Protection | Over Power, Over Current, Over Voltage, Over Temperature | |
| Interfaces | USB, RS232, LAN | |
| Dimensions | 215 x 107 x 386 mm | |
| Weight | 5.17 kg |
Pros and cons
- Good price/quality ratio
- High resolution
- Can endure 30A
- Not compatible with banana plugs
