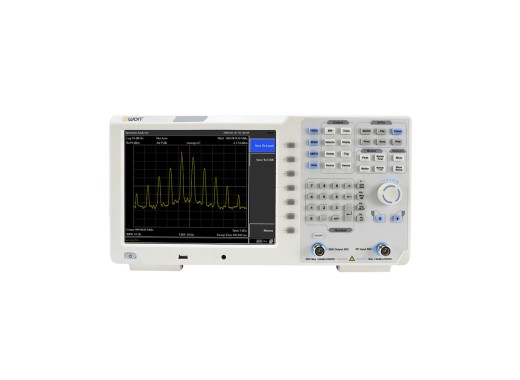

Owon XSA1075P-TG spectrum analyser

4545.46 €4,545.46 Excl. VAT

Loading stock info

Product number: ELE006335

Lowest price guaranteed

Details

The Owon XSA1075P-TG spectrum analyser features a notably large bandwidth of 7.5 GHz at this pricepoint, in addition to a tracking generator. The low noise level (up to -160 dBm/Hz with the pre-amplifier turned on) and the included measurement functions together allow for advanced and precise measurements to be carried out, which can easily be read off of the 10.4" LCD touchscreen display. The tracking generator is able to produce an output frequency of 100 kHz to 7.5 GHz, with an output power of -40 dBm to 0 dBm. All Owon XSA1000P-TG series spectrum analysers offer very similar performance, with their main distinctive aspect being the frequency range they can operate in. Additionally, they all feature a Pass/Fail function, EMI pre-compliance test function and waterfall plot function by default.

Model overview

Model	Bandwidth	Tracking generator	Price
XSA1015P-TG	9 kHz - 1.5 GHz	100 kHz - 1.5 GHz	975.21 €975.21 Excl. VAT
XSA1015P-TG-LF	10 Hz - 1.5 GHz	100 kHz - 1.5 GHz	1249 €1,249.00 Excl. VAT
XSA1032P-TG	9 kHz - 3.2 GHz	100 kHz - 3.2 GHz	1750 €1,750.00 Excl. VAT
XSA1036P-TG	9 kHz - 3.6 GHz	100 kHz - 3.6 GHz	1899 €1,899.00 Excl. VAT
XSA1036P-TG-LF	10 Hz - 3.6 GHz	100 kHz - 3.6 GHz	2149 €2,149.00 Excl. VAT
XSA1075P-TG	9 kHz - 7.5 GHz	100 kHz - 7.5 GHz	4545.46 €4,545.46 Excl. VAT
XSA1075P-TG-LF	10 Hz - 7.5 GHz	100 kHz - 7.5 GHz	4990 €4,990.00 Excl. VAT

Specifications

RBW	1 Hz - 1 MHz
Resolution	1 Hz
Noise Level	Up to -140 dBm/Hz, with pre-amplifier on up to -160 dBm/Hz
Phase noise (at 10 kHz offset)	< -106 dBc / Hz
Third-order intercept (IP3)	+13 dBm
Maximum input voltage	50V DC
Maximum input power	30 dBm average continuous power
Amplitude display	Log: 1 dB - 255 dB, 5 divisions Linear: 0 - 100 %, 5 divisions
Tracking generator	100 kHz - 1.5 Ghz, -30 dBm - 0 dBm
Interfaces	USB HOST, USB DEVICE, LAN, earphone port, HDMI
Display	10.4" LCD (1024x768)
Dimensions	375 x 185 x 120 mm
Weight	5 kg
