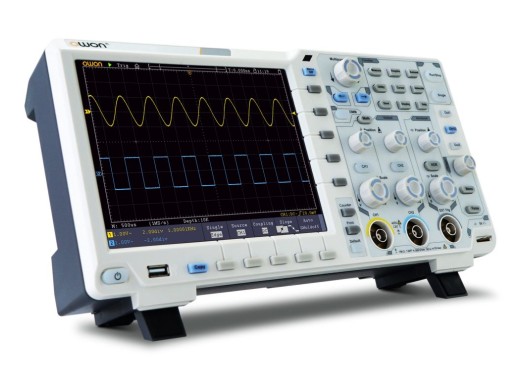

Owon XDS3062A oscilloscope
Details
The XDS series is the new product line of Owon based on the succesful SDS series. The performances are outstanding, with a memory depth of 40 Megapoints and 75.000 waveforms per second waveform capture rate.
This model is the XDS3062A from Owon and this one has a 12bit ADC instead of the usual 8bit. Only improving the resolution would not be as valuable if Owon would not have improved the noise floor as well. And Owon did not forget this. For this scope the vertical sensitivity begins at 1mV, instead of 5mV, and goes up untill 10V/div.
The XDS series is (same as with the SDS series) equipped with a VGA port, USB host, USB device, LAN, AUX and IR. SCPI is also supported for remote operation and reading out values. The scope also has standard multi-trigger support.
Difference between 8-bit and 12-bit ADC
In the video below you can see the difference between a 8-bit converter and a 12-bit analog-digital converter.
Specifications
| Bandwidth | 60 MHz |
| Sample rate | 1 GSa/s (8-bit), 500 MSa/s (12-bit) |
| Memory depth | 40 MPts |
| Waveform capture rate | tot 75 000 Wfm/s |
| Rise time | ≤ 5.8 ns |
| Channels | 2 |
| Horizontal scale | 2 ns/div - 1000s/div |
| Vertical resolution | 1 mV/div - 10 V/div |
| Maximum voltage | 1 MΩ ≤ 300 Vrms |
| Input impedance | 1 MΩ and 15 pF |
| Connections | USB host, USB device, USB port for PictBridge, trigger, VGA and LAN |
| Display | 8" LCD, 800x600 pixels |
| Weight | 2.6 kg |
| Dimensions | 340 x 177 x 90 mm |
Options
The following options are included for free with the XDS3062A:
- VGA
- LAN
The configuration of options cannot be changed.
Accessories:
The Owon XDS3062A comes including the following accesories:
- Power cord
- CD-disc with PC software
- User manual
- USB cable
- 2 probes
- Probe adjuster
Downloads
| Owon XDS series datasheet |  (424.24 KB) | Download |
| Owon XDS series manual | (2.88 MB) | Download |
| XDS3000E/A series Datasheet | (2.9 MB) | Download |
| Owon XDS3000 Data Sheet | (713.53 KB) | Download |
