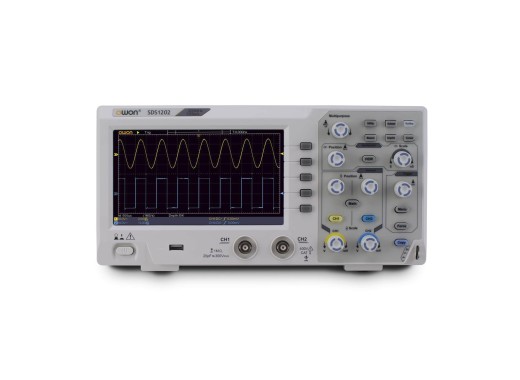

The Owon SDS1202 oscilloscope has a sample rate of 1GSa/s and a high 200MHz bandwidth. Additionally, the oscilloscope has an ultra-thin body and a 7 inch high resolution color LCD. The SDS1202 contains 2 channels with a record length of 10K. Furthermore, 16 wave forms can be stored and with the use of the USB connection measurement results can be exported. Additionally, this scope supports SCPI, LabVIEW
Model overview
The models of the SDS1000 series differ mainly in the bandwidth and channels. The most important specifications are listed next to each other in the table below.
Model |
SDS1022
|
SDS1102
|
SDS1104
|
SDS1202
|
Channels |
2 |
2 |
4 |
2 |
Bandwidth |
20 MHz |
100 MHz |
100 MHz |
200 MHz |
Sample rate |
100 MSa/s |
1 GSa/s |
1 GSa/s |
1 GSa/s |
Price |
132.77
Regular Price:
€156.20
Now:
€132.77
Excl. VAT
|
164.46
€164.46
Excl. VAT
|
222.31
Regular Price:
€280.17
Now:
€222.31
Excl. VAT
|
247.11
€247.11
Excl. VAT
|
Specifications
Memory depth |
10 Kpts |
ADC |
8 bits |
Rise time |
≤1.7 ns |
Trigger types |
Edge, Video |
Vertical scale |
5 mV/div - 5 V/div |
Horizontal scale |
2 ns/div - 100 s/div |
Interfaces |
USB host, USB Device |
Eleshop noise rating |
★ ★ ★ ★ ★
|
Display |
7" color LCD (800 x 480 pixels) |
Weight |
1.1 kg |
Dimensions |
301 x 152 x 70 mm |
Accesories
The Owon SDS1202 oscilloscope will be delivered including:
- Power cord
- Manual
- USB cable
- Probe
- Probe adjust
- CD Rom
