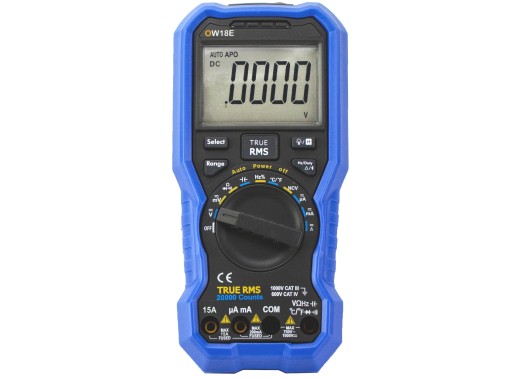

Owon OW18E multimeter

The Owon OW18E is a high-quality multimeter with a 4 1/2 bit resolution display and 20000 counts. In comparison to the OW18D, the OW18E has bluetooth, which makes it able to connect it to a smartphone. The auto-off function on the meter makes sure that the battery life will be extended. Additionally, the multimeter is True-RMS test supported and has a fashlight function. Furthermore, it is possible to measure both AC and DC current and voltage. As well as current and voltage, also resistance, capacitance, duty cycle, temperature and frequency can be measured.

Models

Model	OW18A	OW18B	OW18D	OW18E
Bluetooth	no	yes	no	yes
Digits	3 5/6 digits	3 5/6 digits	4 ½ digits	4 ½ digits
Counts	6000	6000	20000	20000
Price	20.16 €20.16 Excl. VAT	29.99 €29.99 Excl. VAT	33.71 €33.71 Excl. VAT	49.54 €49.54 Excl. VAT

Specifications

Resolution	20000 counts 4 ½ digits
LCD backlight	Yes
Max. Voltage range	DC: 1000V AC: 750V
Max. Current range	DC: 15A AC: 15A
Safety compliance	600V CAT IV, 1000V CAT III
True RMS	Yes
Sample rate	3 times/second
Features	Auto power-off, on-off warming, low-battery indicator, data hold, auto ranging, automatic-manual range selection
Measurement functions	Duty cycle, voltage, current, resistance, capacity, temperature, diode test, NCV, frequency
Dimensions	190 x 90 x56 mm
Weight	320 g

Accessories

The Owon OW18E multimeter will be delivered including:

• Multimeter lead
• K-type Thermocouple
• 9V battery
