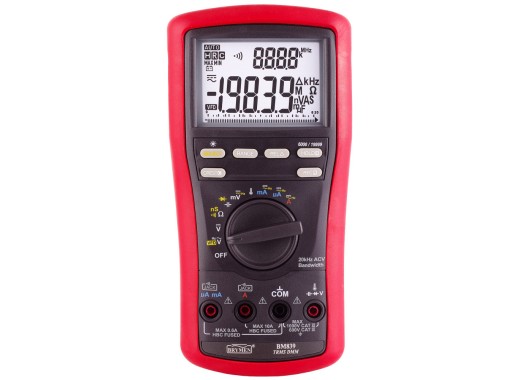

The Brymen BM839 is a high quality multimeter designed for the industrial sector. It features a 20000 and 6000 counts dual display, through which the measuered values can be displayed with high accuracy. The BM839 achieves a resolution of up to 10µV in DC voltage measurements!
The multimeter is able to measure True RMS AC & DC voltage and current, resistance (and conductivity), capacity, frequency and temperature. The uniqueness of this meter is that it can be chosen to read the values in 20000 or 6000 counts.
Thanks to the backlit display, the meter can also be used in poorly lit environments. Furthermore, the BM839 has an excellent record function.
Specifications
| Display |
Dual display, 20000 and 6000 counts |
| Measuring frequency |
5 measurements per second |
| Measurement range |
| Max. DC voltage range |
1000V |
| Max. AC voltage range |
1000V |
| Max. AC current range |
10A |
| Max. DC current range |
10A |
| Max. Resistance range |
60MΩ |
| Temperature range |
-40°C - 1090°C |
| Max. Capacity range |
20 mF |
| Frequency range |
6 Hz - 100 kHz |
|
| Other features |
Diode tester, Continuity, Crest 5ms, DataHold, Duty cycle, REC (MAX, MIN, MAX&MIN, AVG) |
| Dimensions |
206 x 103 x 64.5 mm |
| Weight |
635 gram |
Accessories
This meter is supplied including:
- 1x BKP60 type-K thermocouple
- Test leads
- User manual
- Holster
