Owon OEL6015T electronic load

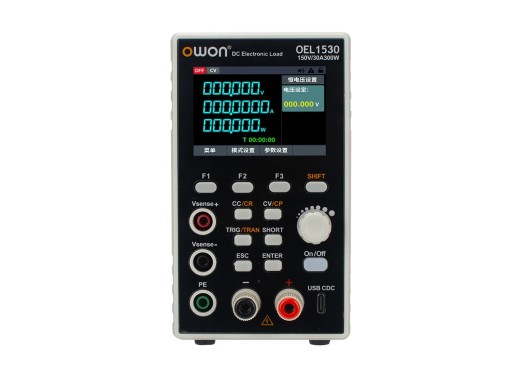

The image displayed depicts the OEL1530, although it is similar in design and layout.
Details
The OWON OEL6015T is part of the OEL15/30/60 series programmable electronic loads, which is a cost-efficient, but lower-end series of electronic loads. All loads we offer are the T version, which all come included with OCP, OPP, battery discharge and ripple tests. The compact OEL6015T is able to draw up to 150W, and it can pull up to 15A and 600V.
This series of electronic loads offers basic functionality, such as an adjustable slew rate up to 2A/μs, a 5kHz dynamic mode, and remote compensation. A unique feature that is not common for electronic loads is the ability to directly plug banana cables into the load. Additionally, the load features several tests such as a battery discharge test, ripple test, OCP test and OPP test. Moreover, the electronic load has a bright 2.8-inch LCD screen with a resolution of 1mV/1mA and can be controlled via RS232 or USB. Finally, this compact and cost-efficient load is the perfect addition to your home lab for basic purposes.
Model overview
| Model | Power | Voltage range | Current range | Price |
|---|---|---|---|---|
| OEL1515T | 150 W | 0 - 150 V | 0 - 15 A | |
| OEL3015T | 150 W | 0 - 300 V | 0 - 15 A | |
| OEL6015T | 150 W | 0 - 600 V | 0 - 15 A | |
| OEL1520T | 300 W | 0 - 150 V | 0 - 20 A | |
| OEL1530T | 300 W | 0 - 150 V | 0 - 30 A | |
| OEL3020T | 300 W | 0 - 300 V | 0 - 20 A | |
| OEL3030T | 300 W | 0 - 300 V | 0 - 30 A | |
| OEL6020T | 300 W | 0 - 600 V | 0 - 20 A | |
| OEL6030T | 300 W | 0 - 600 V | 0 - 30 A |
Specifications
| Resolution | 1 mV / 1 mA |
| Resistance | 0.05 Ω - 7.5 Ω |
| Slew rate | 0.01 A/ms - 2000 A/ms |
| Static modes | CC, CR, CV, CP |
| Dynamic modes |
Yes, 5 kHz
|
| Protection | OPP, OCP, OVP, OTP |
| Interfaces | RS232, RS485, USB |
| Display | 2.8" TFT |
| Dimensions | 84 x 151 x 283 mm |
| Weight | 2.5 kg |
Accessories
The OEL6015T comes by default with:
- Power cord
- Spare fuse
Downloads
| Owon OEL15/30/60 series datasheet |  (4.64 MB) | Download |
| OEL user manual | (1.72 MB) | Download |
