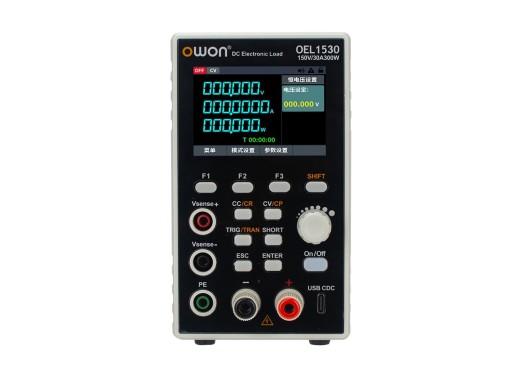

Owon OEL1530T electronic load

The OWON OEL1530T is part of the OEL15/30/60 series programmable electronic loads, which is a cost-efficient, but lower-end series of electronic loads. All loads we offer are the T version, which all come included with OCP, OPP, battery discharge and ripple tests. The compact OEL1530T is able to draw up to 300W and it can pull up to 30A, and 150V.

This series of electronic loads offers basic functionality, such as an adjustable slew rate up to 2A/μs, a 5kHz dynamic mode, and remote compensation. A unique feature that is not common for electronic loads is the ability to directly plug banana cables into the load. Additionally, the load features several tests such as a battery discharge test, ripple test, OCP test and OPP test. Moreover, the electronic load has a bright 2.8-inch LCD screen with a resolution of 1mV/1mA and can be controlled via RS232 or USB. Finally, this compact and cost-efficient load is the perfect addition to your home lab for basic purposes.

Model overview

Specifications

Accessories

The OEL1530T comes by default with:

• Power cord
• Spare fuse

Downloads

Owon OEL15/30/60 series datasheet	(4.64 MB)	Download
OEL user manual	(1.72 MB)	Download
