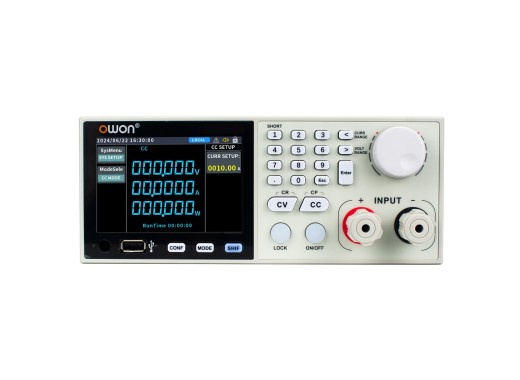

Owon OEL8511 electronic load
Details
The OWON OEL8511 is part of the OEL8500 series electronic loads, which is a budget series of electronic loads and offers a competitive price for these specifications. The OEL8511 is able to draw up to 200W and it can pull up to 20A, and 150V.
This series of electronic loads offers a lot of functionality for its price, such as an adjustable slew rate up to 2A/μs, a 5kHz dynamic mode, remote compensation, parallel mode to connect multiple loads in parallel, and input polarity reversal protection which protects the load if you accidentally swap the + and -. A unique feature which is not common for electronic loads is the ability to directly plug banana cables into the load. Additionally, the load features several tests such as a battery discharge test, OCP test and OPP test. With these tests, you can determine if the OCP or OPP of other devices work. Finally, the electronic load has a bright 3.9-inch LCD screen with a resolution of 1mV/1mA and can be controlled via RS232 or USB.
Model overview
| Model | Power | Input voltage range | Input current range | Price |
|---|---|---|---|---|
| OEL8511 | 200 W | 0 - 150 V | 0 - 20 A | |
| OEL8511B | 200 W | 0 - 300 V | 0 - 20 A | |
| OEL8511C | 200 W | 0 - 600 V | 0 - 20 A | |
| OEL8512 | 400 W | 0 - 150 V | 0 - 40 A | |
| OEL8512B | 400 W | 0 - 300 V | 0 - 40 A | |
| OEL8512C | 400 W | 0 - 600 V | 0 - 40 A | |
| OEL8513 | 500 W | 0 - 150 V | 0 - 40 A |
Specifications
| Resolution | 1 mV / 1 mA (CC / CV) |
| Resistance | 0.05 Ω - 7.5 Ω |
| Slew rate | 0.01 A/ms - 2000 A/ms |
| Static mode | CC, CR, CV, CP |
| Dynamic modes | Yes, 5 kHz |
| Protection | OPP, OCP, OVP, OTP, LRV, RVV |
| Interfaces | RS232, USB |
| Display | 3.9" TFT |
| Dimensions | 215 x 88 x 375 mm |
| Weight | 4.2 kg |
Accessories
The OEL8511 comes by default with:
- Power cord
- Spare fuse
Downloads
| Owon OEL8500 series datasheet |  (46.6 MB) | Download |
| Owon OEL8500 series manual | (2.05 MB) | Download |
