Owon HDS2102 handheld oscilloscoop

185.95 €185.95 Excl. VAT

Loading stock info

Product number: ELE005880

Lowest price guaranteed

Details

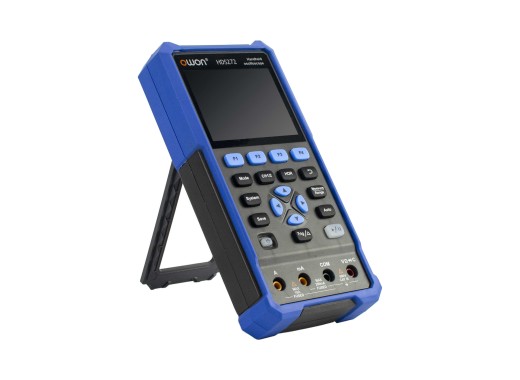

To clarify, externally the HDS2102 looks almost identical to the pictured product.

The HDS2102 is a handheld dual-channel oscilloscope that can also be used as a multimeter and function generator. The meter has a high-contrast 3.5" color display that is easy to read outdoors as well. The easy-to-replace 18650 batteries provide the meter with 6 hours of continuous power. The USB-C port serves as both a charging port as well as SCPI interface. Compared to the Hantek 2000 series oscilloscopes, the Owon HDS200 series have a larger screen and larger internal memory. Also, these scopes have 20,000 digits count compared to Hanteks 4000.

Up to 8k data points can be stored internally. Waveforms can be stored as an image or CSV file. Through USB, that data can be transferred to a PC host.

Besides an oscilloscope, the HDS2102 is also a full-fledged 20,000 count True-RMS multimeter for voltage, current, resistance, capacitance, continuity and diode testing. Values are displayed in large digits on the screen as seen in the demonstration video below. The multimeter mode also features auto-ranging.

Model overview

The models of the HDS200 differ in their bandwidth and whether they have a function generator, as outlined in the table below.

Model	HDS242	HDS242S	HDS272	HDS272S	HDS2102	HDS2102S	HDS2202	HDS2202S
Bandwidth	40 MHz	40 MHz	70 MHz	70 MHz	100 MHz	100 MHz	200 MHz	200 MHz
Function generator	No	Yes	No	Yes	No	Yes	No	Yes
Price	105 €105.00 Excl. VAT	128.1 €128.10 Excl. VAT	144.63 €144.63 Excl. VAT	144.63 Regular Price: €165.29 Now: €144.63 Excl. VAT	185.95 €185.95 Excl. VAT	185.95 €185.95 Excl. VAT	223.14 €223.14 Excl. VAT	247.93 €247.93 Excl. VAT

Specifications

Oscilloscope specifications

Sample rate	500 MSa/s (single channel) 250 MSa/s (dual channel)
Memory	8 kpts (single channel) 4 kpts (dual channel)
A/D converter	8 bit
Trigger types	Edge
Waveform recording rate	10,000 wfms/s
Rice time	≤5 ns typ.
Vertical scale	10 mV/div - 10 V/div
Horizontal scale	2 ns/div - 1000 s/div
Measurement parameters (vertical)	Vmax, Vmin, Vpp, Mean, Amplitude
Measurement parameters (horizontal)	Period, Freq

Multimeter mode specifications

Specifications	Range	Accuracy (smallest range)
DC voltage	0.01 mV - 1000 V	±0.5% + 5
AC voltage	0.01 mV - 750 V	±0.8% + 5
DC current	10 μA - 10 A	±0.8% + 2
AC current	10 μA - 10 A	±1% + 5
Resistance	0.01 Ω - 100 MΩ	±0.8% + 3
Capacitance	1 pF - 2 mF	±3% + 10
