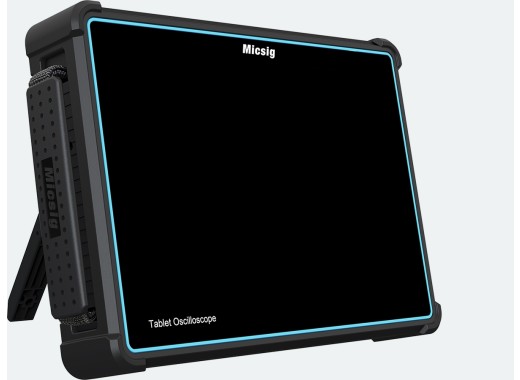

The Micsig TO1004 oscilloscope is a 4 channel 100 MHz digital oscilloscope with a full-touchscreen. The tablet like properties combined with TPU+ABS protective shell and a 7500 mAh battery make this a powerful oscilloscope ideal for use at home as well as on the road. Furthermore, this oscilloscope features a deep memory of 110 Mpts and serial bus decoding/analysis.

The Micsig TO1004 has 31 automatic built-in measuring programs and a large 32GB internal storage. Additionally it has a large 10" TFT touchscreen featuring 256-level intensity grading and a color temperature display. These features show more frequent signals with more brightness or a different color respectively. The software runs on a powerful Android system and works essentially the same as a tablet. For example, you can connect to the Internet via Wi-Fi to send data, use iOS/Android remote control or take photos/videos. The scope also has an HDMI connection so that the scope can be connected for example to a beamer for a live demonstration. It is also possible to control the oscilloscope via remote control.

Model overview

Model	TO1004	TO2002	TO2004	TO3004
Bandwidth	100 MHz	200 MHz	200 MHz	300 MHz
Channels	4	2	4	4
Rise time	≤ 3.5 ns	≤ 1.75 ns	≤ 1.75 ns	≤ 1.16 ns
Memory depth	110 Mpts (divided by number of active channels)	110 Mpts (divided by number of active channels)	220 Mpts (single channel) 110 Mpts (all channels)	220 Mpts (single channel) 110 Mpts (all channels)
Sample rate	1 GSa/S (divided by number of active channels)	1 GSa/S (divided by number of active channels)	2 GSa/S (single channel) 1 GSa/S (all channels)	2 GSa/S (single channel) 1 GSa/S (all channels)
Waveform capture rate	78.000 wfm/s	78.000 wfm/s	300.000 wfm/s	300.000 wfm/s
Input impedance	1 MΩ	1 MΩ	1 MΩ / 50 Ω	1 MΩ / 50 Ω
Price	629 €629.00 Excl. VAT	469 €469.00 Excl. VAT	949 €949.00 Excl. VAT	1099 €1,099.00 Excl. VAT

Specifications

Vertical scale	1mV/div - 10V/div
Horizontal scale	1 ns/div - 1 ks/div
Bandwidth Filter	20 MHz, high pass / low pass (to 30 kHz)
Interfaces	USB Host, USB-C, LAN, Wi-Fi, Trigger Out, grounding
Decoding options	IIC, SPI, UART/RS232, CAN, LIN
Display	10.1" TFT LCD touchscreen (1200x800)
Battery	7.4 V, 7500 mAh
Eleshop noise production rating	★ ★
Dimensions	265 x 192 x 50 mm
Weight	1.9 kg
