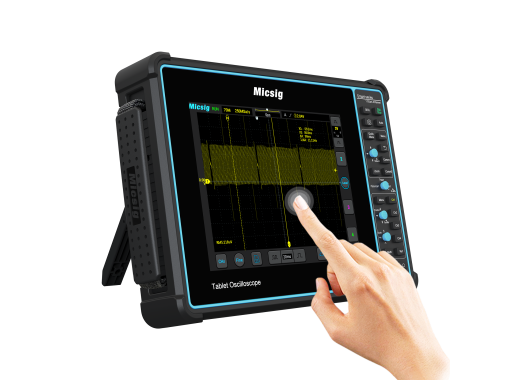

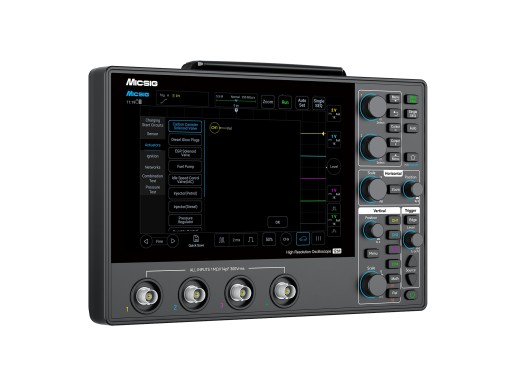

Micsig SATO1004 (Gen6) handheld automotive oscilloscope
Details
The Micsig SATO1004 (Gen6) is a 12-bit, 4-channel, automotive tablet oscilloscopes with a 100MHz bandwidth. The oscilloscope has integrated automotive diagnostic software, providing diagnostic tests and dedicated analysis modes for ICE or NEV troubleshooting. The scope can be controlled controlled with the 8" multi-touch LCD touchscreen, which makes it easy and intuitive to operate in the field. The SATO1004 can be controlled with either a PC, smartphone, or SCPI commands. It can also connect to external monitors via the onboard HDMI out. The flexibility of this oscilloscope, along with the extensive diagnostic software, makes this an excellent tool for those who need to perform vehicle diagnostics on a regular basis.
Looking for an automotive oscilloscope with a higher bandwidth and integrated multimeter? Then take a look at the Micsig AHO14-200.
Specifications
| Bandwidth | 100 |
| Channels | 4 |
| Rise time | ≤ 3.5 ns |
| Sample rate | 1 GSa/S (single channel) |
| Memory depth | 110 Mpts (single channel) |
| Capture rate | 50.000 wfm/s |
| Vertical resolution | 12 bits |
| Vertical scale | 1 mV/div - 10 V/div |
| Horizontal scale | 2 ns/div - 1 ks/div |
| Decoding type | RS-232/422/485, UART, I2C, SPI, CAN, CAN FD, LIN, ARINC429, 1553B |
| Supported tests | Charging circuits, starter circuits, sensors, actuators, ignition, networks (including CAN, LIN, Flexray, K line, etc.), combination tests |
| Display | 8" Touchscreen LCD, 1280 x 800 px. |
| Interfaces | Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out |
| Battery | 16000 mAh |
| Dimensions | 265 x 174 x 31 mm |
| Weight | 1.68 kg (with battery) |
Accessories
The SATO1004 is shipped with the following:- 12V DC power adapter
- 2x Passive probe
- 4x BNC - banana cables
- 2x Pair of test needles
- 2x Pair of alligator clips
Downloads
| Micsig SATO1004 (Gen6) datasheet |  (4.01 MB) | Download |
| Micsig SATO1004 (Gen6) user manual | (25.63 MB) | Download |
| Micsig SCPI programming manual | (814.07 KB) | Download |
