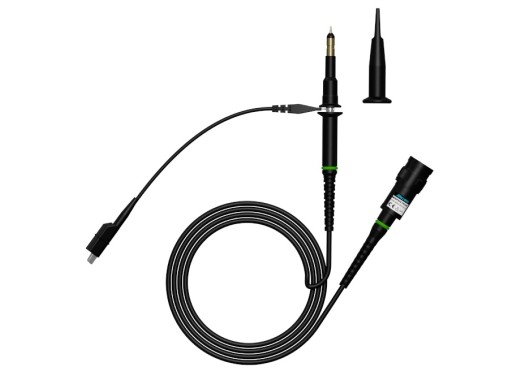

Micsig MSP510 passive probe
Details
The Micsig MSP510 is a competitively priced 500MHz passive DC-coupled probe with 10MΩ input impedance and a 1:10 attenuation ratio. This passive probe is universal, which means this probe can be used with any oscilloscope. The MSP510 probe features a 1.5m cable, and is rated for a maximum input voltage of 300V AC.
Specifications
| Bandwidth | 500 MHz |
| Probe tip capacitance | 10.5 pF ± 0.5 pF |
| Input impedance | 10 MΩ |
| Attenuation ratio | 1:10 |
| Maximum input voltage | 300 V AC |
| Cable length | 132 cm |
| Weight | 53 g |
Accessories
The MSP510 probe comes with:
- 1x Retractable hook tip
- 1x Adjustment tool
- 8x Marker rings (4 colours)
- 1x Ground lead (alligator clip)
Pros and cons
- Can be used with any oscilloscope
- Competitively priced
Downloads
| MSP510 user manual |  (556.93 KB) | Download |
