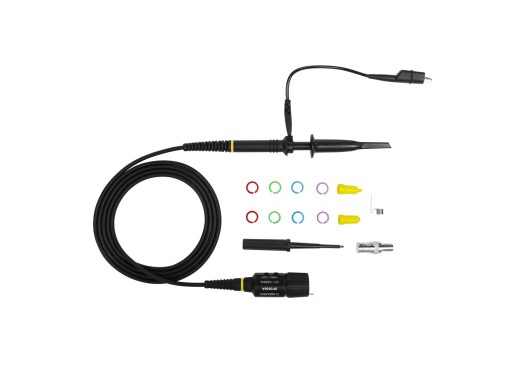

Siglent SP5050A passive probe 500 MHz
Details
The Siglent SP5050A is a passive probe with a bandwidth of 500MHz and an attenuation of 1:10. This probe can be used for various applications and is supplied with several accessories to ensure optimal contact.
The A version has a special pin to support the detection of the probe attenuation factor by oscilloscopes.
Specifications
| Bandwidth | 500 MHz |
| Rise time | 0.7 ns |
| Maximum voltage | 300 V DC + ACpk |
| Attenuation | 1:10 |
| Input impedance | 10 MΩ / 12 pF |
Accessories
- Retractable hook tip
- Adjustment tool
- Ground lead
- Ground spring
- BNC adapter
- 2x Locating sleeve
- 8x Marker ring
Downloads
| Siglent SP5050A user guide |  (1.09 MB) | Download |
