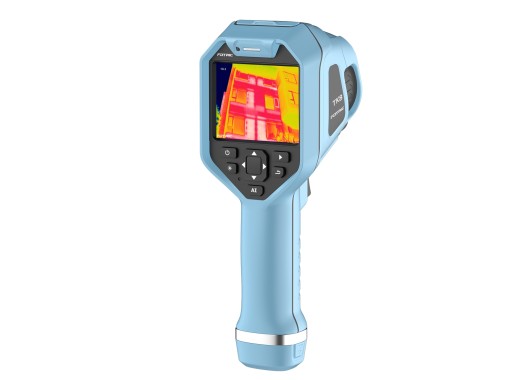

Fotric TK8 thermal camera
Details
The Fotric TK8 is part of the TK-series thermal cameras. This series stands out due to its high-quality infrared sensor, creating a notably better thermal and visual image. The camera has a resolution of 384x288 pixels and a thermal sensitivity of 40mK. Moreover, the TK8 features a narrow FOV and an adjustable focus. Making this camera a great choice for PCB analysis and the detection of multiple surfaces. In addition, the camera has a large 3.5" touchscreen, and can connect over wifi and Bluetooth for file sharing and remote control.
The TK series has all the features of a high-end thermal camera, such as multiple image modes, colour palattes, HDMI output and a temperature alarm. Finally, the batteries of Fotric devices are interchangeable, and the TK series has a battery life of 4 hours. An additional battery is included, extending the usage time of the camera in the field.
Model overview
The TK6-kit and TK8 offer adjustable focus and a smaller FOV. The angle of view of the TK5-kit and TK7 is much larger, so the image looks more "zoomed out".
| Model | TK5-kit | TK6-kit | TK7 | TK8 |
|---|---|---|---|---|
| Manual focus | No |
Yes |
No |
Yes |
| Super resolution | No |
No |
768 x 576 |
768 x 576 |
| Video capture | No |
No |
Yes |
Yes |
| Focal length | 3 mm | 7.0 mm | 3.2 mm | 7.0 mm |
| Field of view | 49° x 37° | 25° x 19° | 49° x 37° | 25° x 19° |
| Focal distance | 40 cm | 15 cm | 40 cm | 15 cm |
| Price |
Specifications
| Temperature range | -20 to 550 °C |
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| IR resolution | 384 x 288 |
| Thermal sensitivity (NETD) | ≤40 mK |
| Frame rate | 40 Hz |
| Display | 3,5" (320 × 240 pixels) |
| Colour palettes | Grey, iron, rainbow, greyred, rain, glowBow, medical, prism |
| Storage | 32GB micro-SD card, expandable up to 128GB |
| Battery | Up to 8 hours (4 hours per battery) |
| Dimensions | 243 × 95 × 142 mm |
| Weight | 0.8 kg |
Accessories
The TK8 comes by default with:
- 1x USB-Type C cable
- 1 x SD card
- 1 x SD card reader
- 1 x Power adaptor
- 2 x Battery
- 1 x Hard case
- 1 x Soft bag
Pros and cons
- High-quality infrared sensor
- HDMI output
- Adjustable focus
Downloads
| Fotric TK-series manual |  (3.65 MB) | Download |
| Fotric TK-7/8 datasheet | (1.68 MB) | Download |
