Guide IR H2S thermal camera

Eleshop
Inspection
Thermal cameras
Guide IR H2S thermal camera

2232 €2,232.00 Excl. VAT

Loading stock info

Product number: ELE006886

Be the first to review this product

Lowest price guaranteed

Details

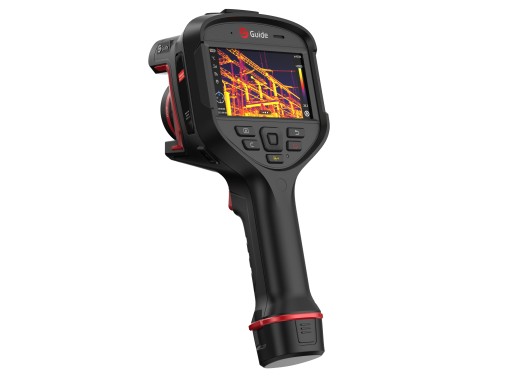

The Guide IR H2S thermal camera from the Hammer series can measure temperature in the range of -40 °C - 650°C, and supports intelligent switching.

Unique in the Guide IR Hammer series, this product features a 5 MP camera, with a digital zoom of 1.1x to 8x and a focal distance of 10.5 mm, providing a very high IR resolution of max. 256 x 192 pixels with quite a minimal object distance of just 10 cm. The H series also supports regional dimming.

Featuring IP54 protection, 2 meter drop resistance, laser ranging and easy to change lithium-ion batteries, which can charge up to 90% in one hour. Furthermore, it has a 4.3" LCD touchscreen with a resolution of 800 x 480, a speaker, microphone, an electronic compass and GPS.

This product can make high-quality photo's and videos with audio in both the infrared and visible light spectrum, in mp4 format for image or lrgd format for temperature. These files can be transferred either via Wi-Fi or Bluetooth 5.0 to your mobile device (Android only) or cloud-service, or even transmitted and viewed in real-time. Also a direct ethernet connection can be made, with an included USB-C to RJ45 connector.

Additional accessories like lenses, batteries, tripod or docking station can be ordered by contacting Eleshop through email.

Contact information

For tutorials on the Thermotools software, the Guide Youtube account, seen here, contains many videos on how to use the software.

Model overview

Model	Guide H2S	Guide H3S	Guide H3+S	Guide H4S	Guide H6S
Focal length	6.8 mm	8.5 mm	10.5 mm	13 mm	17.7 mm
IR resolution	256 x 192 (49152 pixels)	320 x 240 (76800 pixels)	384 x 288 (110592 pixels)	480 x 360 (172800 pixels)	640 x 480 (307200 pixels)
Battery	5 hours	5 hours	5 hours	4 hours	4 hours
Price	2232 €2,232.00 Excl. VAT	4344 €4,344.00 Excl. VAT	5174 €5,174.00 Excl. VAT	6899 €6,899.00 Excl. VAT	8624 €8,624.00 Excl. VAT

Specifications

Temperature range	-40 - 650 °C
Accuracy	±2 °C or ±2% (whichever is greater)
NETD	≤15 mK
Frame rate	50 Hz / 9 Hz
FOV	25° x 19°
Min. focus distance	15 cm
Image modes	IR, VIS, MIF, PIP
External interface	USB-C, SD card slot, UNC tripod mounting
Display	4.3" LCD
Colour palettes	White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice and Fire, Amber, Customized
Storage	Local storage (64 GB) and TF card (64 GB and up to 256 GB)
Dimensions	292 x 125 x 125 mm
Weight	≤1150 g (with battery)
