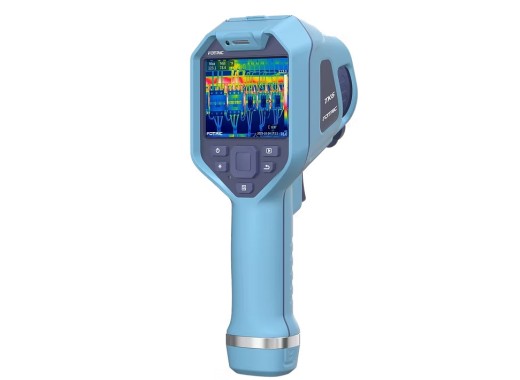

Fotric TK6-kit thermal camera
Details
The Fotric TK6-kit is part of the TK-series thermal cameras. This series stands out due to its high-quality infrared sensor, creating a notably better thermal and visual image. The TK6-kit is a stripped-down version, offering the high-quality sensor without super resolution and recording capabilities. The camera has a resolution of 384x288 pixels and a thermal sensitivity of 40mK. Moreover, the TK6-kit features a narrow FOV and an adjustable focus. Making this camera a great choice for PCB analysis and detection on multiple surfaces. In addition, the camera has a large 3.5" touchscreen, and can connect over wifi and Bluetooth for file sharing and remote control.
The TK series has all features of a high-end thermal camera, such as multiple image modes, colour palettes, and a temperature alarm. But, the TK6-kit features Picture-in-Picture and T-DEF image blending modes, allowing thermal and visible images to be displayed together as well as using automatic hot and cold spot tracking and adjustable emissivity.
The TK6-kit includes a durable hard carrying case, soft carrying bag and a wearable belt clip, as well as two rechargeable lithium batteries.
Model overview
The TK6-kit and TK8 offer adjustable focus and a smaller FOV. The angle of view of the TK5-kit and TK7 is much larger, so the image looks more "zoomed out".
| Model | TK5-kit | TK6-kit | TK7 | TK8 |
|---|---|---|---|---|
| Manual focus | No |
Yes |
No |
Yes |
| Super resolution | No |
No |
768 x 576 |
768 x 576 |
| Video capture | No |
No |
Yes |
Yes |
| Focal length | 3 mm | 7.0 mm | 3.2 mm | 7.0 mm |
| Field of view | 49° x 37° | 25° x 19° | 49° x 37° | 25° x 19° |
| Focal distance | 40 cm | 15 cm | 40 cm | 15 cm |
| Price |
Specifications
| Temperature range | -20 to 450 °C |
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| IR resolution | 320 x 240 |
| Thermal sensitivity (NETD) | ≤40 mK |
| Frame rate | 30 Hz |
| Display | 3.5" touchscreen IPS-LCD (640 x 480) |
| Colour palettes | Grey, iron, rainbow, greyred, rain, glowBow, medical, prism |
| Storage | TF card up to 32GB |
| Battery | 5000 mAh, up to 5 hours |
| Dimensions | 243 × 95 × 142 mm |
| Weight | 720g |
Accessories
The TK6-kit comes with:
- 1x USB-C cable
- 1x 32GB TF card
- 1x Power adapter
- 2x Batteries
- 1x Charging dock
- 1x Belt clip
- 1x Hard case
- 1x Soft bag
Pros and cons
- High-quality infrared sensor
- Adjustable focus
- No super resolution
- No recording capabilities
Downloads
| Fotric TK-series manual |  (3.65 MB) | Download |
| Fotric TK-6 datasheet | (65.91 KB) | Download |
| Fotric TK-6 manual | (1.01 MB) | Download |
