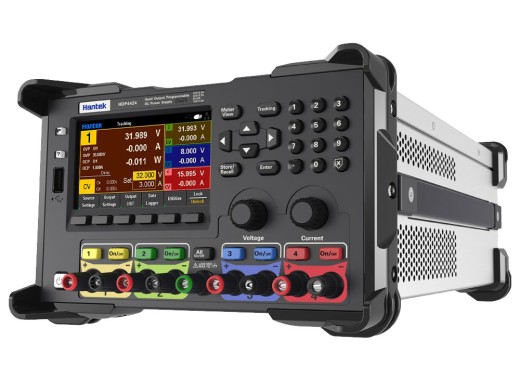

Hantek HDP4424 power supply
Details
The Hantek HDP4424 power supply is a programmable 4 channel power supply, with all channels electrically isolated and each channel is continuously adjustable. The first two channels are both 32 V/3.2 A, the third channel is 8 V/2 A and the fourth channel is 16 V/1.5 A, and the power supply has a power output of 245 W It has a 4.3" color display with real-time voltage/current/power values displayed and the use of colors makes it easy to identify information relevant to the output of a particular channel. This power supply has a high resolution of 1 mV/1 mA, a fast transient response time of ≤ 50 µs and it has a low ripple of < 350 µVrms/2 mVpp. The intelligent fan automatically adjusts the speed which reduces the noise produced by the power supply. Furthermore it has over voltage, over current, over power, overheating and short circuit protection functions and the over voltage and over current parameters can be flexibly set to achieve effective load protection. The HDP4424 has standard USB and LAN configuration ports and also supports SCPI remote command control. Next to SCPI, there is also software available on the Hantek website.
The series and parallel functions can combine the first and second channel into one power supply. These channels also have an independent and tracking mode, where, respectively, the channels are independent and form two outputs and the channels are independent electrically but track their voltage settings.
Model overview
We offer two models in the Hantek HDP4000 series, which differ in the channels and output.| Model | HDP4324 | HDP4424 |
|---|---|---|
| Channels | 3 | 4 |
| Output voltage | CH1: 32 V CH2: 32 V CH3: 8 V |
CH1: 32 V CH2: 32 V CH3: 8 V CH4: 16 V |
| Output current | CH1: 3.2 A CH2: 3.2 A CH3: 5 A |
CH1: 3.2 A CH2: 3.2 A CH3: 2 A CH4: 1.5 A |
| Price |
Specifications
| Total power | 245 W |
| Output on/off switch | Yes, for each channel seperately and all channels together |
| Resolution | 1 mV / 1 mA |
| Ripple | < 350 µVrms / 2 mVpp |
| Protection | OVP, OCP, OTP, OPP |
| Interfaces | USB HOST, USB DEVICE, Digital I/O, LAN |
| Dimensions | 232 x 153 x 392 mm |
| Weight | 9.45 kg |
Accessories
The Hantek HDP4424 power supply comes with the following accessories:
- Power cord
- USB cable
Pros and cons
- Programmable
- High resolution
- Intelligent fan that reduces the noise
- No RS232
Downloads
| HDP4000 series quick guide |  (1.24 MB) | Download |
| HDP4000 series manual | (1.56 MB) | Download |
| HDP4000 series SCPI programming reference | (211.27 KB) | Download |
