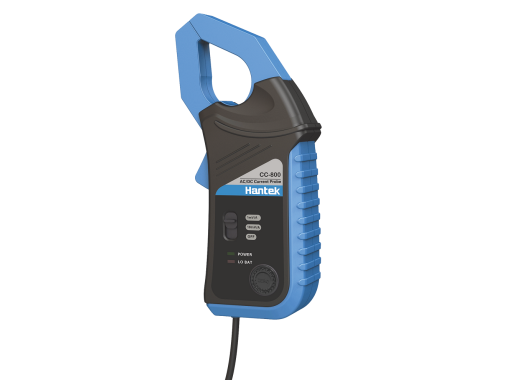

The Hantek CC-800 current probe has a current range of 1A - 800A and a frequency range of DC - 5kHz. It has a sliding button that allows for 2 different input ranges of 1mV/A, and 10mV/A. Additionally, it has a rotary knob to set the zero position. It also has a clamp design, which is convenient for testing the current without disconnecting the circuit. Furthermore, the clamp has a maximum jaw size of 30mm.
The current probe comes with a BNC output cable, which can be used to connect it to an oscillator.
Model overview
| Model
| Hantek CC-650
| Hantek CC-800
|
| Bandwidth
| DC - 400 Hz
| DC - 5 kHz
|
| Current range
| 20 mA - 650 A
| 1 A - 800 A
|
| Maximum DC current
| 650 A (1 mV / A), 40 A (10 mV / A)
| 500 A (1 mV / A), 40 A (10 mV / A)
|
| Maximum AC current
| 500 A (1 mV / A), 40 A (10 mV / A)
| 800 A (1 mV / A), 40 A (10 mV / A)
|
| Price
|
73.55
€73.55
Excl. VAT
|
81.82
€81.82
Excl. VAT
|
Specifications
| Bandwidth | DC - 5 kHz
|
| Current range | 1 A - 800 A
|
| Maximum DC current | 500 A (1 mV / A), 40 A (10 mV / A)
|
| Maximum AC current | 800 A (1 mV / A), 40 A (10 mV / A)
|
| Battery type | 9 V DC
|
| Maximum jaw size | 30 mm
|
| Dimensions | 195 x 70 x 33 mm
|
| Weight | 250 g
|
Pros and cons
- Widely used in vehicle diagnostics
- Range only starts at 1A
- Buttons do not feel very good
- Clamp allignment not optimal
