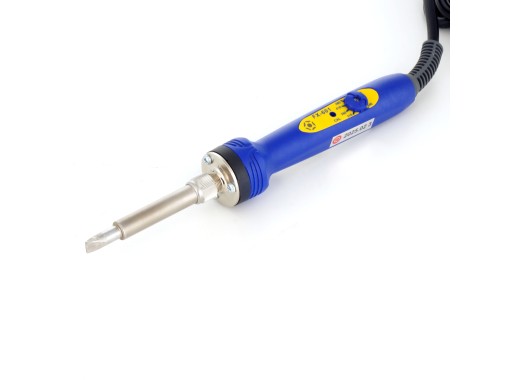

Hakko FX-601 heavy-duty soldering iron

The Hakko FX-601 is a stand-alone soldering iron, which is suitable for heavy-duty soldering work where a lot of heat is required. These actions include work on chassis, large connectors, and transformers in all different kinds of applications such as general production, sheet metal, maintenance work, etc. Like all our Hakko products, this is a 100% original Hakko product that is suitable for 220/230V and has a European plug.

With the newly redesigned T19 series soldering tip, the FX-601 achieves great heat conductivity and recovery without increasing its power consumption, as compared to a conventional Hakko soldering iron. Its lightweight and compact design means that the FX-601 is very easy to handle. The LED on the iron provides a good indication when the desired temperature has been reached. On top of that, the Hakko also has a calibration screw to adjust the temperature accuracy. The soldering iron also has a locking feature to prevent accidentally changing the temperature setting.

This soldering iron unfortunately does not come with a stand or brass wool. But the Hakko 633-01 is a good alternative and complements this soldering iron very well.

The Hakko FX-601 is very well suitable for both Tiffany as stained glass! We recommend to use a large tip for this, such as the 6.5mm bevel tip (T19-C65).

Specifications

You may also use the T18 sleeve adapter to use T18 series tips with this soldering iron. The Hakko B5286 protective cap screws onto the iron to protect the tip during transport and storage.

Accessories

The Hakko FX-601 comes with:

• 1 x Lock key
• 1 x T19-D65 soldering tip (chisel)

Downloads

Hakko FX-601 manual

(1.61 MB)

Download
