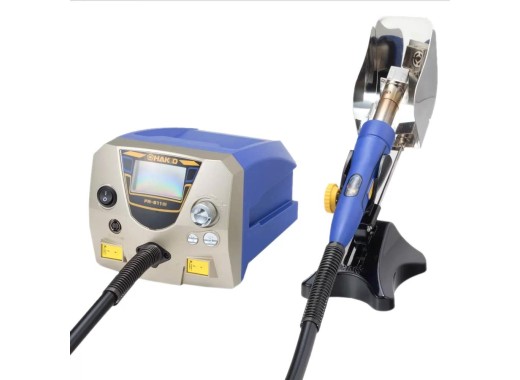

Hakko FR-811 hot air soldering station
The price of this product is temporarily reduced! SOLD OUT = SOLD OUT!
Details
The Hakko FR-811 hot air soldering station has a temperature range of 50℃ to 600℃ and a turbo fan capable of a large volume air flow, up to 115L/min. On the LCD it is easy to check the current settings or operation status, with data displayed both numerically and graphically. The settings are changed through an efficient multi-direction control knob.
The handpiece has an integrated pre-set pickup function, which indicates the moment the solder has melted. The vacuum pickup function even automatically picks up the desoldered component with the vacuumpipe.
Also included with this product is a thermocouple, which can be connected to the T/C port. It allows for the measurement and recording of the temperature of the component being worked on. This data can be recorded onto a USB flash drive or transferred through the included USB cable to a PC, where it can be monitored in real-time. The necessary software is included.
Take note: No nozzles are included. It is recommended to also purchase the N51-50 nozzles set.
Specifications
| Power | 1200 W (30 W station + 1170 W handpiece) |
| Temperature range | 50 ℃ - 600 ℃ |
| Air flow rate | 5 L/min - 115 L/min |
| ESD safe | Yes |
| Compressor type | Fan |
| Dimensions | 160 x 145 x 220 mm |
| Weight | 1.68 kg (1.5 kg station + 0.18 kg handpiece) |
Accessories
The FR-811 comes with:
- Station with handpiece
- Grip stand assembly
- Vacuum pipe control knob
- 6 x pad (2x ⌀3 mm, 2x ⌀5 mm, 2x ⌀7.6 mm)
- Thermocouple
- Heat resistant pad
- USB cable
- Power cord
Pros and cons
- Pickup indicator
- Vacuum pickup function
- Nozzles are not included
Downloads
| Hakko FR-811 Datasheet |  (1.27 MB) | Download |
| Hakko FR-811 Manual | (7.36 MB) | Download |
