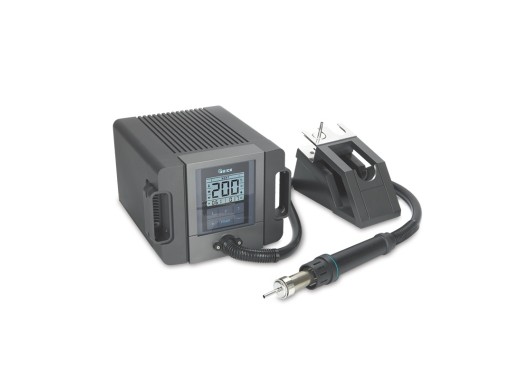

Quick TR1350 ESD hot air soldering station
Details
The Quick TR1350 is a 1300W hot air soldering station, suitable for (automated) rework tasks. It has an airflow of 70L/min and is ESD safe. It features 3 programmable channels, each with a range of 100℃ - 500℃, with a 2°C stability. It is easy to switch between each selected temperature.
Other functions include an auto identification alarm, which will be triggered if a soldering iron does not match with the soldering station. And the password lock function prevents production process parameters from being changed without permission. The soldering station can also be automatically or even remotely switched off.
Specifications
| Power | 1300 W |
| Temperature range | 100 ℃ - 500 ℃ |
| Air flow rate | 6L/min - 70L/min |
| ESD safe | Yes |
| Compressor type | Fan |
| Dimensions | 215 x 155 x 1230 mm |
| Weight | 5.3 kg |
Pros and cons
- 1300W of power
- High temperature stability
- Programmable temperature channels
Downloads
| Quick TR1350 manual |  (692.01 KB) | Download |
