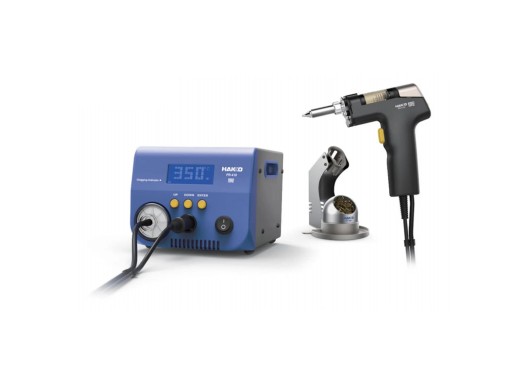

The FR-410 desoldering station of Hakko is a very powerful desoldering station with a power of 140 watts. This high power ensures that even very thick PCB's can be soldered with ease with this station.
Furthermore, this station uses a vacuum pump but also has a special valve system. This valve system ensures that, after a short delay of 0.2 seconds, you can pump away the tin with the full force of the vacuum.
Without this valve system, there is always a small build-up of suction power. This way of vacuuming the pewter is a lot more efficient than with just a vacuum.
In contrast to previous models, the heating element of the soldering gun heats the entire passage to the filter. As a result, clogging will almost never occur again. Furthermore, there is also an ACF (Anti Clogging Function) that Pumps the pump for 1-5 seconds after releasing the trigger.
The nozzles of the desoldering gun are easy to change with the supplied change wrench. A number of different N61 nozzles are also available. These nozzles can be found on this page .
|Temperature||330 - 450 ºC|
|Temperature stability||± 5 ºC|
|Vacuum pressure||600 mmHg|
|Suction current||15 L/min|
|Nozzle to ground resistance||≤2Ω|
|Nozzle to ground potential||≤2 mV|
|Cord length desoldering gun||1.2 m|
|Dimensions||165 x 137 x 244 mm|
