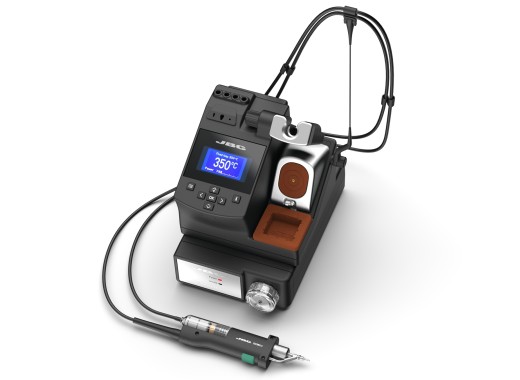

The JBC CS-2F desoldering station offers high-quality performance and has a power output of 40 W. It is designed for precision applications. Similar to other JBC stations, it offers fast heating capabilities. The hibernation and sleep mode functions help prolong the tip life. The temperature can be adjusted on the display, ranging from 90 to 450 ºC. Additionally, this station features a cleaning system with a splashguard and antisplash membrane to keep the nozzles clean.
The desoldering station can be connected to a computer via USB, allowing for the export of user data and graphs using the provided software. Furthermore, the station is connected to the MS-A electric vacuum pump that offers good suction by generating an increased vacuum when switched on. This allows the desoldering station to suck up the molten tin before it can drain away or harden.
The CS-2F includes a 7-key keypad for fast and easy configuration of the soldering station. Connectivity with the JBC FAE1 fume extractor via an RJ12 connector is also supported.
Power | 40 W |
Temperature range | 90 °C - 450 °C |
Vacuum pressure | 570 mmHg |
ESD safe | Yes |
Nozzle to earth resistance/voltage | 2 Ω / 20 mV |
Flow rate | 9 L/min |
Dimensions | 170 x 176 x 145 mm |
Weight | 4.0 kg |
The CS-2F comes by default with the following:
JBC CS-2F desoldering station manual |
(19.36 MB) | Download |
