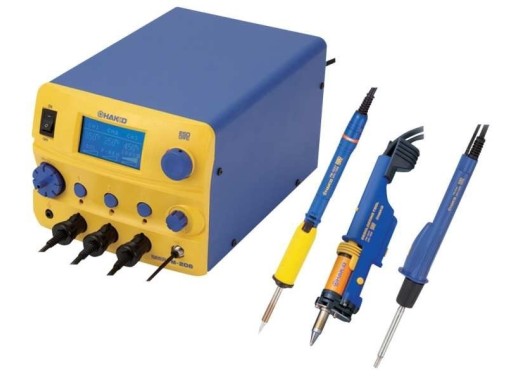

Hakko FM-206 multi rework station
Details
The Hakko FM-206 is a multi-tool rework station that can incorporate 3 different tools at once: this set includes the FM2027 soldering iron, the FM2024 desoldering gun and the FM2029 hot-air handle, including their accesories. However, any other tool in the Hakko FM20xx catalogue can be connected to the FM-206, making it an all-in-one rework station. Furthermore, the station has an easy to use interface with a clear LCD display. Do mind, no tips or nozzles are included yet.
Specifications
| Power | 410W | ||||||
| Heating element | Composite | ||||||
| Temperature range | |||||||
| |||||||
| Tip to earth resistance/voltage | 2 Ω / 2 mV | ||||||
| Dimensions | 162 x 136 x 245 mm | ||||||
| Weight | 6.2kg | ||||||
Buy your N3 desoldering nozzles for the FM2024 here
Buy your N4 Hot nozzles for the FM2029 here
Accessories
This product includes:
- Station control unit
- FM2024 desoldering iron
- FM2027 soldering iron
- FM2029 hot air tool
- FH 200-05 desoldering iron holder
- FH 200-01 soldering iron holder
- C 1574 hot air tool holder
- Tip tray
- 2x 599B-02 Soldering tip cleaner
- Power cord
Pros and cons
- 3 included tools
- No nozzle or tip included
Downloads
| Hakko FM-206 manual |
 (2.66 MB) |
Download |
