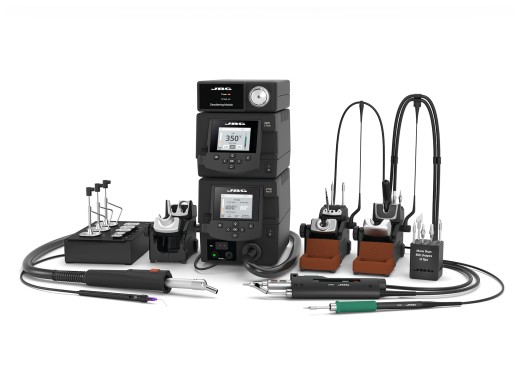

JBC RMSE-2QJ complete rework station

JBC's RMSE is an all-in-one station for soldering and rework applications. This set contains a vacuum pump, hot air station, soldering station and corresponding handles.

Soldering station

The control station, named DDE, offers connections for two soldering tools that can be used simultaneously. 150 watt is available for both tools. With the large colour display, temperatures and settings can be managed easily. In addition, the DDE also offers an extensive menu to easily change various user settings. It is even possible to connect settings to specific tools so that the station automatically sets the desired properties when connected to a soldering iron.

The soldering iron that is supplied with the station is a T245-A iron. This slim iron offers a comfortable grip and weighs only 66 gram making it very easy to use. Two irons are supplied with the station, but JBC has tips for every possible application. The tips of these irons are active resulting in a better heat transmission.

The station creates real time graphs that display temperature and power. These graphs can be stored easily on a USB stick at the front of the station. At the back of the station there is a second USB port to connect the station to a computer.

Hot air station

The hot air station, included in the RMSE set, is a JT-Q type. This station also contains a USB connector to install software updates. This station also has more than 20 adjustable variables that can be changed via the menu. The station has a nominal power of 700 watt and can be set between 150 and 450 °C. In addition, a pick-and-place tool is also supplied. This is a little vacuum pen that enables components to be picked up easily.

Desoldering

For desoldering purposes, the RMSE offers a MSE-B vacuum pump. This pump delivers a suction of 35 SLPM. It is connected together with the DDE station to a DR560-A desoldering iron. Various tips are available for this iron, starting at a diameter of 0.6 mm, which is perfect for the desoldering of SMD components.

Handles

This soldering station also offers corresponding handles and stands for all these applications. These stands have various practical functionalities: they switch off the iron automatically if placed in the stand, prolonging the life span of the tip considerably. In addition, they have handles to change hot tips. Because of this, it is no longer necessary to wait until the tip has cooled before it can be switched.

The default 2-year warranty can be extended to 3 years by registering your device.

Specifications

For more information, please read the user manual.

Accessories

The RMSE is fully equipped with:

• Hot-air control unit
• DDE 2-tool station
• MSE desoldering module
• T245 soldering iron (without any soldering tips!)
• DR560 desoldering iron with C560-003 nozzle
• JTT heater hose set
• ADS stand for soldering iron
• DRS stand for desoldering iron
• JTS stand for hot air handle
• ESHT for protectors & extractors
• T260 pick & place
• Soldering tip holder
