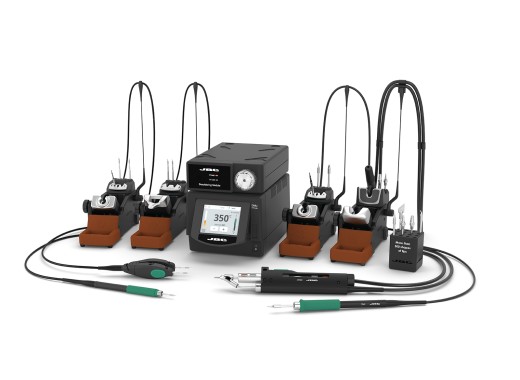

JBC DMPSE-2QD (de)soldering station
Details
The JBC DMPSE-2QD (de)soldering station is a complete high quality solution to rework circuits. The set consists of the control unit, an electric desoldering module and the corresponding handles. The tips are not included but the following tip ranges are compatible with the (de)soldering station: C120, C210, C245, C560. The station is suitable for various options due to the wide range of tips. Precision and delicate work, micro and standard use and standard desoldering can be done. The DME can manage up to 4 tools simultaneously and has sleep and hibernation modes, ensuring fast heating time and extended tip life. The desoldering module produces the vacuum needed to remove molten solder from plated through hole and surface mount pads. The DMPSE-2Q works with an electric pump and has a 3.5" inch color TFT touch screen which provides quick access to the station parameters.
The default 2-year warranty can be extended to 3 years by registering your device.
Specifications
| Temperature | 90℃ - 450℃ |
| Vacuum | 85% 35 SLPM |
| Tip to ground resistance | < 2 Ω |
| Power | 160W per tool |
| Voltage | 23.5 V |
| Dimensions | 148 x 120 x 232 mm |
| Weight | 12.79 kg |
Accessories
The JBC DMPSE-2QD (de)soldering station will be delivered including:
- Control unit (DME)
- Electric desoldering module (MSE-B)
- Adjustable micro tweezers (AM120-A)
- Precision purpose handle (T210-A)
- General purpose handle (T245-A)
- Desoldering iron (DR560-A)
- Stand for handles (AD-SF)
- Stand for micro tweezers (AM-SB)
- Stand for desoldering iron (DR-SF)
- Tip holder (SCH-A)
- Pedal (P-405)
Pros and cons
- 4 tools
- High quality
- Excellent solution for all purposes
- Changing the tweezer tips is more difficult than with other JBC tools
Downloads
| JBC DMPSE-2QA datasheet |  (3.77 MB) | Download |
