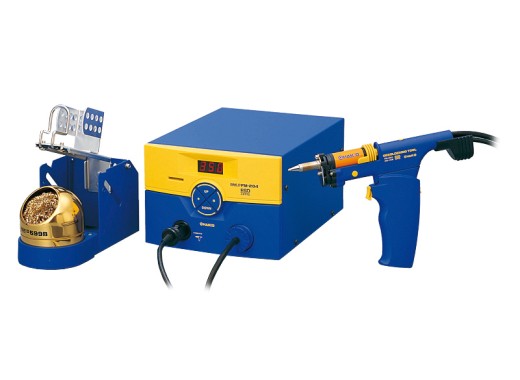

The Hakko FM-204 is a powerful desoldering station with a power of up to 120W. The FM-204 comes standard with the FM-2024 desoldering gun. In addition, it is also possible to connect the FM-2027 soldering iron to the station, providing both soldering and desoldering functionality. Please note that the FM-204 has only one connection, so either the soldering iron or the desoldering gun can be connected.
Because of its high power output, the FM-204 reaches the desired temperature and recovers quickly after each operation.
The desoldering gun can be used in 2 configurations because the handle is removable. This allows you to choose the desired position for each application.
The station comes with a quick-change nozzle system which makes it easy to change the Hakko N3 nozzles, even when they have not yet cooled down. In addition, the FM-204 has a sleep mode functionality to reduce energy consumption and to inhibit the oxidation of the tip.
Attention! By default there is no nozzle included with the FM-204, you have to order this yourself. Suitable nozzles for this are the N3 nozzles, which you can find via the blue button.
Power | 120 W |
Temperature | 350℃- 450℃ |
Temperature stability | ±5℃ |
Vacuum pressure | 600 mmHg |
Suction power | 15 L/min |
ESD safe | Yes |
Nozzle to ground resistance | ≤2 Ω |
Nozzle to ground potential | ≤2 mV |
Dimensions | 160 x 120 x 225 mm |
Weight | 3.7 kg |
The Hakko FM-204 is supplied including:
Hakko FM-204 manual |
(5.38 MB) | Download |
