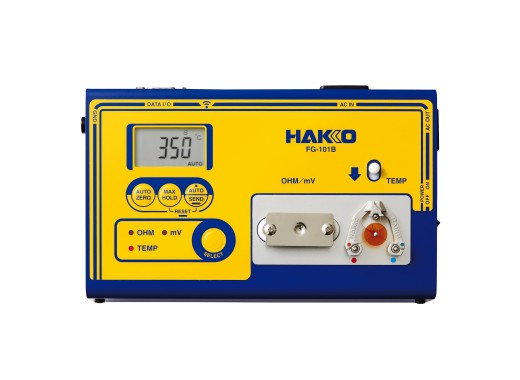

Hakko FG-101B soldering tip thermometer
Promotion! Apply this code in the shopping cart to get 10% discount: HAKKO10
Details
The Hakko FG-101B is a thermometer designed for use with soldering irons. The thermometer is capable of measuring the temperature of the soldering iron tip up to 700℃. It features the AS5000 thermocouple, which can measure regardless of the angle of the soldering iron. The FG-101B can also measure the leak voltage and the tip-to-ground resistance, which are required for a grounded soldering station. The leak voltage can be measured up to 40mV, and the tip-to-ground resistance can be measured up to 40Ω.
The FG-101B also includes some advanced measurement functions, such as auto hold and max hold. It can also send temperature measurement results to a soldering station with an IR receiver. The meter can also be used to measure the zero-point error using the auto-zero function.
Also available for this product is a temperature probe for soldering baths.
Specifications
| Temperature resolution | 1 ℃ |
| Temperature range | 0 - 700 ℃ |
| Temperature accuracy | ±3℃ (300 - 600 ℃), ±5℃ otherwise |
| Temperature sensor type | K (CA) type thermocouple |
| Voltage resolution | 0.1 mV |
| Voltage range | 0 - 40 mV |
| Voltage accuracy | ±(5% of reading + 1 digit) |
| Resistance resolution | 0.1 Ω |
| Resistance range | 0 - 40 Ω |
| Resistance accuracy | ±(5% of reading + 1 digit) |
| Display | 3 1/2 digit LCD |
| Dimensions | 211 x 53 x 126 mm |
| Weight | 950 g |
Accessories
The Hakko FG-101B includes:
- Power cord
- Conduction wire
- Ground clip
- Fuse
- AS5000 Sensor
Pros and cons
- Replaceable sensor
- Auto hold & max hold
- Industrial quality
- Measures leak voltage
- Measures tip-to-ground resistance
Downloads
| Hakko FG-101B datasheet |  (1.58 MB) | Download |
| Hakko FG-101B instruction manual | (2.26 MB) | Download |
