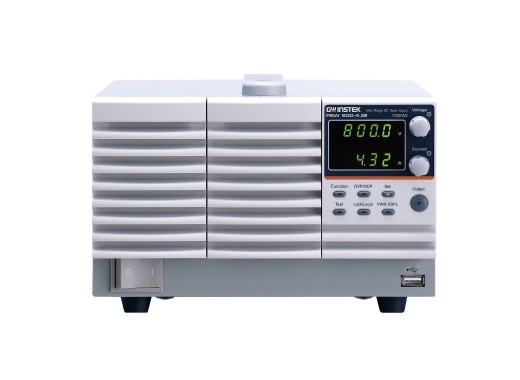

GW Instek PSW 800-4.32 power supply

2470.5 €2,470.50 Excl. VAT

Loading stock info

Product number: ELE006789

Be the first to review this product

Lowest price guaranteed

Details

The GW Instek PSW 800-4.32 is a programmable lab power supply that is ideal for testing, for example, a Device Under Test (DUT). The lab power supply has Constant Voltage- (CV) and Constant Current- (CC) modes, which are useful for the protection of DUT's particularly in the battery and LED industry.The 800V power supply has active cooling and an analog control, with an adjustable slew rate.

Another useful feature of PSW models is that it is capable of parallel operation (up to 3 units), to increase the total current. Take note that the PSW 800 models, in comparison to most other PSW models, can't operate in series.

The Over Voltage and Over Current Protections have adjustable levels, making them very suitable for the protection of DUT's.

Model overview

Model	Total Power	Max. voltage	Max. current	Ripple	Price
PSW30-36	360 W	30 V	36 A	7 mV, 72 mA	1094.4 €1,094.40 Excl. VAT
PSW40-27	360 W	40 V	27 A	7 mV, 54 mA	1094.4 €1,094.40 Excl. VAT
PSW80-13.5	360 W	80 V	13.5 A	7 mV, 27 mA	1094.4 €1,094.40 Excl. VAT
PSW160-7.2	360 W	160 V	7.2 A	12 mV, 15 mA	1203.3 €1,203.30 Excl. VAT
PSW250-4.5	360 W	250 V	4.5 A	15 mV, 10 mA	1215 €1,215.00 Excl. VAT
PSW800-1.44	360 W	800 V	1.44 A	30 mV, 5 mA	1296 €1,296.00 Excl. VAT
PSW30-72	720 W	30 V	72 A	11 mV, 144 mA	1337.4 €1,337.40 Excl. VAT
PSW40-54	720 W	40 V	54 A	11 mV, 108 mA	1337.4 €1,337.40 Excl. VAT
PSW80-27	720 W	80 V	27 A	11 mV, 54 mA	1337.4 €1,337.40 Excl. VAT
PSW160-14.4	720 W	160 V	14.4 A	15 mV, 30 mA	1471.5 €1,471.50 Excl. VAT
PSW250-9	720 W	250 V	9 A	15 mV, 20 mA	1701 €1,701.00 Excl. VAT
PSW800-2.88	720 W	800 V	2.88 A	30 mV, 15 mA	1782 €1,782.00 Excl. VAT
PSW30-108	1080 W	30 V	108 A	14 mV, 216 mA	1741.5 €1,741.50 Excl. VAT
PSW40-81	1080 W	40 V	81 A	14 mV, 162 mA	1741.5 €1,741.50 Excl. VAT
PSW80-40.5	1080 W	80 V	40.5 A	14 mV, 81 mA	1741.5 €1,741.50 Excl. VAT
PSW160-21.6	1080 W	160 V	21.6 A	20 mV, 45 mA	1916.1 €1,916.10 Excl. VAT
PSW250-13.5	1080 W	250 V	13.5 A	15 mV, 30 mA	2389.5 €2,389.50 Excl. VAT
PSW800-4.32	1080 W	800 V	4.32 A	30 mV, 15 mA	2470.5 €2,470.50 Excl. VAT

Specifications

Outputs	1
Resolution	14 mV / 1 mA
Protection	OVP, OCP, OTP, AC-Fail, Power limit
Interfaces	USB, LAN, GPIB (optional)
Display	4 digit LED

Accessories

The GW Instek PSW 800-4.32 includes:

PSW-008 basic accessory kit:
- 1x Air filter
- 1x Analog control protection dummy
- 1x Analog control lock level
- PSW-011 Output terminal cover
- PSW-012 High voltage output terminal
- GTL-240 USB cable
- Power cord
- Declaration of traceable calibration
Pros and cons
- High voltage range
- Can operate up to 3 units parallel
- Low current range
- Cannot operate in series
Downloads
GW Instek PSW-series datasheet
(938.31 KB) Download
GW Instek PSW-series manual
(5.23 MB) Download
DTC sample
(126.04 KB) Download
