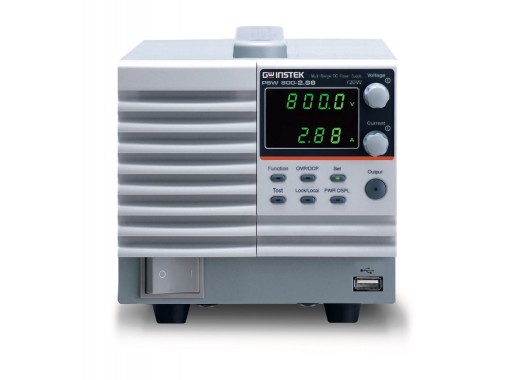

GW Instek PSW 800-2.88 power supply
Details
The GW Instek PSW 800-2.88 is a programmable lab power supply that is ideal for testing, for example, a Device Under Test (DUT). The lab power supply has Constant Voltage- (CV) and Constant Current- (CC) modes, which are useful for the protection of DUT's particularly in the battery and LED industry.The 800V power supply has active cooling and an analog control, with an adjustable slew rate.
Another useful feature of PSW models is that it is capable of parallel operation (up to 3 units), to increase the total current. Take note that the PSW 800 models, in comparison to most other PSW models, can't operate in series.
The Over Voltage and Over Current Protections have adjustable levels, making them very suitable for the protection of DUT's.
Model overview
The PSW 800 power supply series differ in total power, current range, ripple, dimensions and weight.
| Model | PSW 800-1.44 | PSW 800-2.88 | PSW 800-4.32 |
|---|---|---|---|
| Total power | 360 W | 720 W | 1080 W |
| Current range | 1.44 A | 2.88 A | 4.32 A |
| Ripple | 30 mV / 5 mA | 30 mV / 10 mA | 30 mV / 15 mA |
| Dimensions | 71 x 124 x 350 mm | 142 x 124 x 350 mm | 214 x 124 x 350 mm |
| Weight | 3 kg | 5.3 kg | 7.5 kg |
| Price |
Specifications
| Outputs | 1 |
| Output switch | Only ON or OFF |
| Voltage range | 0 - 800 V |
| Resolution | 14 mV / 1 mA |
| Protection | OVP, OCP, OTP, AC-Fail, Power limit |
| Interfaces | USB, LAN, GPIB (optional) |
| Display | 4 digit LED |
Accessories
The GW Instek PSW 800-2.88 includes:
- PSW-008 basic accessory kit:
- 1x Air filter
- 1x Analog control protection dummy
- 1x Analog control lock level
- GTL-240 USB cable
- Power cord
Pros and cons
- High voltage range
- Can operate up to 3 units parallel
- Low current range
- Cannot operate in series
Downloads
| GW Instek PSW-series datasheet |
 (938.31 KB) |
Download |
| GW Instek PSW-series manual |
(5.23 MB) |
Download |
