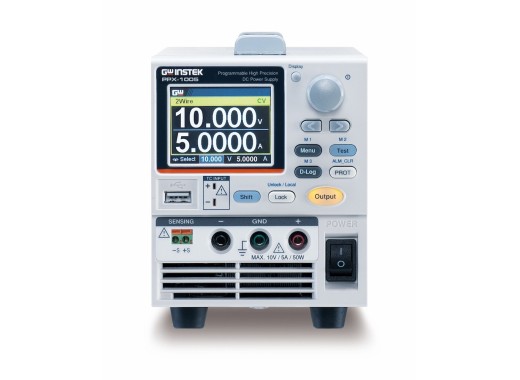

The GW Instek PPX-1005 is a 50W programmable high-precision DC power supply part of the PPX series. This series has a high resolution up to 0.1mV and 0.1µA. The PPX-1005 also features a fast response time of 50µs and low noise of 0.35mV/2mA. Additionally, voltage and current slew rate are adjustable. Furthermore, the PPX series has a sequence test feature allowing the power supply to automatically execute a series of tests, which may also be read from a USB flash drive and results logged to it.
The PPX series can also be used to daisy-chain up to 31 units. Furthermore, remote sensing compensates for voltage loss, ensuring precise voltage delivery. Finally, the power supply comes with USB, LAN, RS-232, and RS-485 interfaces and can be controlled remotely.
Model overview
| Model
| PPX-1005
| PPX-2002
| PPX-2005
| PPX-3601
| PPX-3603
| PPX-10H01
|
| Total power
| 50 W |
40 W |
100 W |
36 W |
108 W |
100 W |
| Voltage range
| 0 - 10 V |
0 - 20 V |
0 - 20 V |
0 - 36 V |
0 - 36 V |
0 - 100 V |
| Current range
| 0 - 5 A |
0 - 2 A |
0 - 5 A |
0 - 1 A |
0 - 3 A |
0 - 1 A |
| Ripple
| 0.35 mV / 2 mA |
0.5 mV / 1 mA |
0.5 mV / 2 mA |
0.8 mV / 400 µA |
0.8 mV / 1 mA |
1.2 mV / 1 mA |
| Price
|
866.7
€866.70
Excl. VAT
|
771.12
Regular Price:
€856.80
Now:
€771.12
Excl. VAT
|
940.5
€940.50
Excl. VAT
|
856.8
€856.80
Excl. VAT
|
940.5
€940.50
Excl. VAT
|
940.5
€940.50
Excl. VAT
|
Specifications
| Outputs | 1 |
| Resolution | 0.1 mV / 0.1 µA |
| Protection | OVP, OCP, OTP |
| Interfaces | USB, LAN, RS-232 / RS-485 (via RJ45 ports) |
| Display | 2.4" TFT |
| Dimensions | 107 x 124 x 313 mm |
| Weight | 5.5 kg |
Accessoires
- Power cord
- GTL-104A test lead
- GTL-204A test lead
- GTL-201A ground lead
- Declaration of traceable calibration
Pros and cons
- High resolution
- Fast response time
- Low noise
- Adjustable voltage and current slew rate
