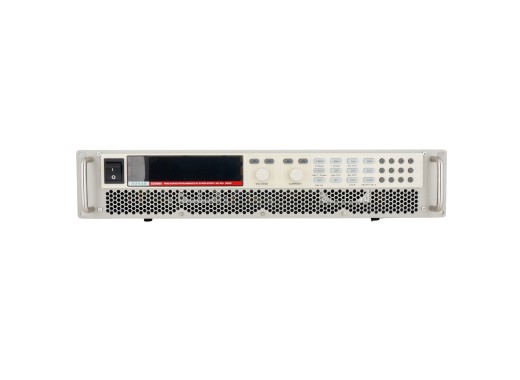

Korad KS6060 power supply
Details
The Korad KS6060 is a high-performance programmable DC power supply designed for precise applications such as in laboratories, repair labs, and industrial environments. The power supply can deliver 1800W of power, with a maximum output of 60V and 60A.
This power supply stands out due to the advanced features such as adjustable voltage and current rise slopes, multiple operating modes, and remote control capabilities. The combination of these features, together with the build quality of the unit, results in a precise power supply with high accuracy. It also features several digital communication interfaces, an analog control interface, and a switching control interface.
The output can be controlled directly on the unit using the knobs or the adjustment keys, with the parameters shown in high resolution on the LCD screen. This model also features a panel lock function to prevent unintentional adjustments of the output when locked. Furthermore, this power supply contains over-voltage protection and overcurrent protection.
Model overview
| Model | KS6030 | KS6060 |
|---|---|---|
| Total power | 1200 W | 1800 W |
| Current range | 0 - 30 A | 0 - 60 A |
| Price |
Specifications
| Outputs | 1 |
| Voltage range | 0 - 60 V |
| Resolution | 1 mV / 1 mA |
| Ripple | ≤ 20 mVrms / ≤ 30 mArms |
| Protection | OVP, OCP |
| Interfaces | USB, RS232, GPIB, LAN |
| Display | High-resolution LCD |
| Dimensions | 430 × 88 × 440 mm |
| Weight | 8.5 kg |
Accessories
The Korad KS6060 programmable DC power supply comes with:
- Power cord
- USB cable
- RS232 cable
Pros and cons
- High power output
- High accuracy
Downloads
| KS series user manual |  (9.91 MB) | Download |
