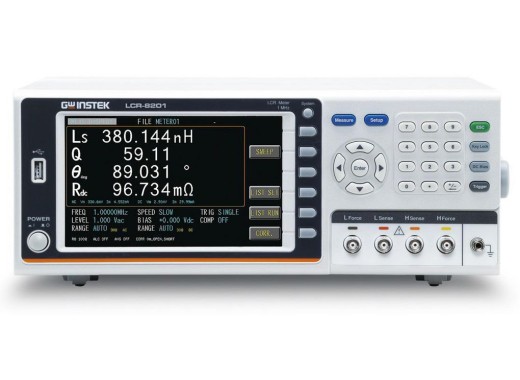

GW Instek LCR-8201 LCR meter
Details
The GW Instek LCR-8201 is part of the LCR-8200 series of LCR meters, offering a wide range of applications. The meter has a basic accuracy of 0.08% and the test frequency can be set to DC and 10 Hz to 1 MHz on this model. The LCR-8201 can measure a total of 17 different parameters,with the ability to measure 4 parameters simultaneously. Additionally, measurement results can be displayed numerically or graphically.
Model overview
The bandwidth is the only difference between the LCR meters in the 8200(A) series.
| Model | Test frequency | Price |
|---|---|---|
| LCR-8201 | DC, 10 Hz ~ 1 MHz | |
| LCR-8205A | DC, 10 Hz ~ 5 MHz | |
| LCR-8210A | DC, 10 Hz ~ 10 MHz | |
| LCR-8220A | DC, 10 Hz ~ 20 MHz | |
| LCR-8230A | DC, 10 Hz ~ 30 MHz | |
| LCR-8250A | DC, 10 Hz ~ 50 MHz |
Specifications
| Measurement accuracy | 0.08% |
| Test speed | Up to 400 times/s |
| Measurement parameters | Impedance (Z), Inductance (Ls / Lp), Capacitance (Cs / Cp), Equivalent Resistance (Rs / Rp), Quality Factor (Q), Dissipation Factor (D), Admittance (Y), Conductance (G), Reactance (X), Phase Angle (θd / θr), Susceptance (B), DC Resistance (Rdc), Resistance (R) |
| Interfaces | USB, GPIB, LAN, RS-232, Handler, USB Host, TRIGGER Input |
| Display | 7" LCD (800 x 480) |
| Dimensions | 346 x 145 x 335 mm |
| Weight | 3.3 kg |
Accessories
The LCR-8201 will be delivered including:
- Test Lead with Kelvin clip(4 wire type) (LCR-06B)
- AC Power Cord
- Declaration of traceable calibration
Pros and cons
- Wide test frequency
Downloads
| LCR-8200 series - Datasheet |  (1.58 MB) | Download |
| LCR-8200 series - User manual | (6.99 MB) | Download |
| DTC sample | (126.04 KB) | Download |
