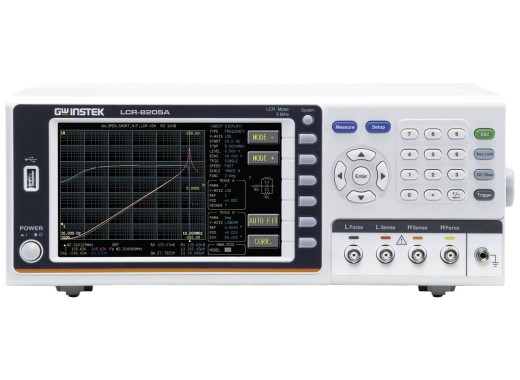

GW Instek LCR-8205A
Details
The GW Instek LCR-8205A is a high-frequency LCR meter with a test frequency of up to 5 MHz and a high accuracy of 0.08%. The meter can measure a total of 17 different parameters, with the ability to measure 4 parameters simultaneously. Additionally, measurement results can be displayed numerically or graphically. The GW Instek LCR 8200A series provides Equivalent Circuit Model Analysis, which simplifies the complex behaviour of a component or system by representing it using a set of circuit elements.
Model overview
The bandwidth is the only difference between the LCR meters in the 8200(A) series.
| Model | Test frequency | Price |
|---|---|---|
| LCR-8201 | DC, 10 Hz ~ 1 MHz | |
| LCR-8205A | DC, 10 Hz ~ 5 MHz | |
| LCR-8210A | DC, 10 Hz ~ 10 MHz | |
| LCR-8220A | DC, 10 Hz ~ 20 MHz | |
| LCR-8230A | DC, 10 Hz ~ 30 MHz | |
| LCR-8250A | DC, 10 Hz ~ 50 MHz |
Specifications
| Measurement accuracy | 0.08% |
| Test speed | Up to 400 times/s |
| Measurement parameters | Impedance (Z), Inductance (Ls / Lp), Capacitance (Cs / Cp), Equivalent Resistance (Rs / Rp), Quality Factor (Q), Dissipation Factor (D), Admittance (Y), Conductance (G), Reactance (X), Phase Angle ( θd / θr), Susceptance (B), DC Resistance (Rdc), Resistance (R) |
| Interfaces | USB, GPIB, LAN, RS-232, Handler, USB Host, TRIGGER Input |
| Display | 7" LCD color display (800 x 480 pixels) |
| Dimensions | 364 x 145 x 335 mm |
| Weight | 3.3 kg |
Accessories
The LCR-8205A comes by default with the following:
- Test Lead with Kelvin clip(4 wire type) (LCR-06B)
- AC Power Cord
- Declaration of traceable calibration
Downloads
| 8200A series user manual |  (4.54 MB) | Download |
| 8200A series datasheet | (653.59 KB) | Download |
| DTC sample | (126.04 KB) | Download |
