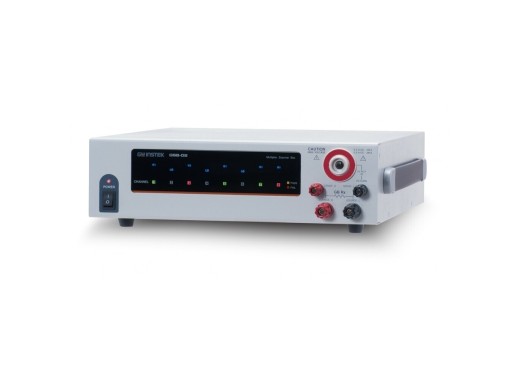

GW Instek GSB-02 multiplex scanner box
Details
The GW Instek GSB-02 multiplex scanner is a dedicated option for the GPT-9800/9900A series of Hi-Pot testers. The scanner extends the output up to 8 channels and can work in tandem with up to 4 total scanners, extending your Hi-Pot tester's capability up to 32 channels. The output channel will be extended to 6 high voltage channels and 2 ground bond channels. This is perfect for for comprehensive compliance testing of electrical equipment with multiple testing points. The GSB-02 is capable of conducting AC/DC withstanding voltage (ACW/DCW), insulation resistance (IR) and ground bond (GB) tests. Furthermore, the scanner box has a high withstanding voltage of 5kVac/6kVdc, an insulation resistance voltage of 1kVdc, and a ground bond current of 40Aac.
The GSB-01 is a version of this scanner box but without the ground bond channel functionality but instead 8 H.V. channels.
Specifications
| Voltage rating | 5 kVac / 6 kVdc |
| Current rating | 40 Aac |
| H.V. channels | 6 CH |
| G.B. channels | 2 CH |
| Maximum number of scanners | 4 (up to 32 channels) |
| Interfaces | RS-232C |
| Dimensions | 330 x 101 x 413 mm |
| Weight | 5.5 kg |
Accessories
The GSB-02 comes with:
- 1x Power cord
- 1x H.V. wiring lead GHT-108
- 1x G.B. wiring lead GHT-109
- 1x Communication cable GTL-235
- 6x GHT-116R test lead
- 1x GHT-116B test lead
- 2x GTL-116R test lead
- 1x GTL-116B test lead
- Declaration of traceable calibration
Downloads
| GSB-01/2 scannerbox datasheet |  (3.14 MB) | Download |
| GSB-02 user manual | (3.17 MB) | Download |
| DTC sample | (126.04 KB) | Download |
