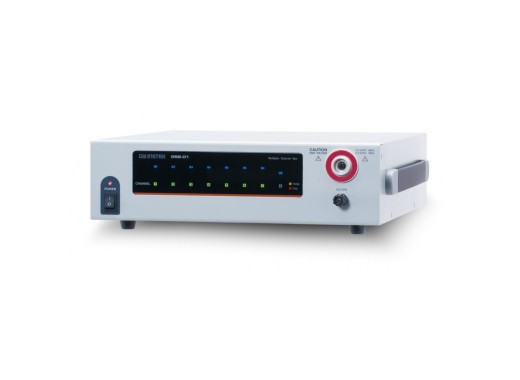

GW Instek GSB-01 multiplex scanner box
Details
The GW Instek GSB-01 multiplex scanner is a dedicated option for the GPT-9800/9900A series of Hi-Pot testers. The scanner expands the output to 8 channels and can be used with up to 4 scanners, extending your Hi-Pot tester's capability to 32 channels. The output channel will be extended to 8 high voltage channels but does not provide ground bond channels. This is perfect for higher efficiency in insulation testing of electrical equipment with multiple testing points. The GSB-01 can conduct AC/DC withstanding voltage (ACW/DCW) and insulation resistance (IR) tests. Furthermore, the scanner box has a high withstanding voltage of 5kVac/6kVdc and an insulation resistance voltage of 1kVdc.
For ground bond channel functionality, see the GW Instek GBS-02.
Specifications
| Voltage rating | 5 kVac / 6 kVdc |
| H.V. channels | 8 CH |
| Maximum number of scanners | 4 (up to 32 channels) |
| Interfaces | RS-232C |
| Power source | AC 100-240 V ± 10 %, 50/60 Hz |
| Dimensions | 330 x 101 x 400 mm |
| Weight | 5.5 kg |
Accessories
The GSB-01 comes with:
- 1x Power cord
- 1x H.V. wiring lead GHT-108
- 1x Communication cable GTL-235
- 8x GHT-116R test leads
- 1x GHT-116B test lead
- Declaration of traceable calibration
Downloads
| GSB-01/2 scannerbox datasheet |  (3.14 MB) | Download |
| GSB-01 user manual | (2.64 MB) | Download |
| DTC sample | (126.04 KB) | Download |
