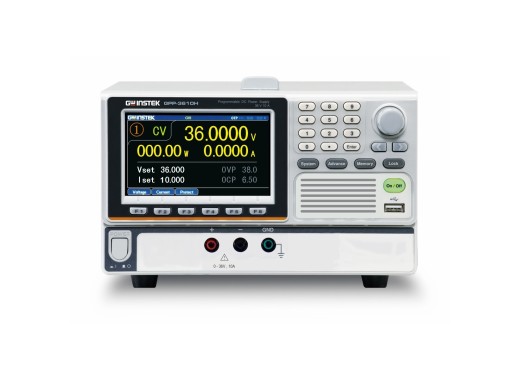

The GW Instek GPP-3610H power supply is a programmable DC power supply with 1 channel and a total output power of 360W. The channel has an output voltage of 0-36V and and output current of 0-10A. The GPP-3610H has a high program resolution of 1mV/0.2mA, read back resolution of 0.1mV/0.2mA and low ripple noise of ≤ 1mVrms/2mArms. The power supply has an output recorder function such that the voltage/current output can be recorded in internal memory or saved and transferred to a USB device. Furthermore, the GPP-3610H has 8 built-in template waveforms and comes with OVP, OCP and OTP protection functions. The power supply has an intelligent temperature-controlled fan that reduces noise.
This version of the GPP-3610H comes with the GPIB interface.
Electronic load
The GW Instek GPP-3610H has a load function of up to 100W. The load has a maximum of 36.5V constant voltage load, 10.2A constant current load and a maximum 1kΩ constant resistance load.
Model overview
We offer multiple single channel power supplies in the GPP series. The main differences are shown in the table below.
Power supply
| Model |
GPP-1326 |
GPP-3610H |
GPP-7250 |
| Voltage range |
0 - 32 V |
0 - 36 V |
0 - 72 V |
| Current range |
0 - 6 A |
0 - 10 A |
0 - 5 A |
| Resolution |
1 mV / 0.2 mA |
1 mV / 0.2 mA |
2 mV / 0.1 mA |
Electronic load
| Input voltage range |
1.5 - 33 V |
0 - 36.5 V |
0 - 72.5 V |
| Input current range |
0 - 6.2 A |
0 - 10.2 A |
0 - 5.2 A |
| Price |
470.7
€470.70
Excl. VAT
|
862.2
€862.20
Excl. VAT
|
862.2
€862.20
Excl. VAT
|
Specifications
Power supply
| Total power | 360 W |
| Outputs | 1 |
| Ripple | ≤ 1 mVrms/2 mArms |
| Protection | OCP, OVP, OTP |
| Interfaces | LAN, RS232, USB, digital IO, GPIB |
| Display | 4.3" TFT LCD |
| Dimensions | 213 x 145 x 362 mm |
| Weight | 10 kg |
Electronic load
| Power | 100 W |
| Resistance | 1 Ω - 10 kΩ |
| Static modes | CV, CC, CR |
Accessories
- 1x power cord
- 1x test lead GTL-104A
- 1x test lead GTL-105A
- Declaration of traceable calibration
