GW Instek GDS-2354HD oscilloscope
Details

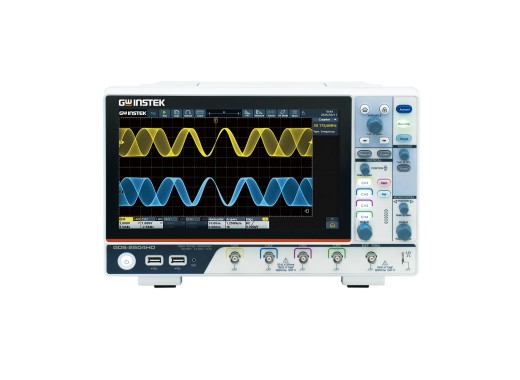

Please note: the product images show the GDS-2504HD. The GDS-2354HD is identical in appearance.
The GW Instek GDS-2354HD is a 4-channel, 350MHz digital storage oscilloscope designed for reliable everyday measurements in engineering, service and education environments. Its 12-bit vertical resolution shows you more waveform detail, which pays off when you are looking at small signal changes, ripple, noise and power-related measurements. The memory is generous for this class: 500Mpts in total, divided over the active channels, so you keep a long capture window at a high sample rate. That helps when you are tracking down an intermittent fault, checking communication behaviour or analysing a switching power supply over a longer time window.
Across the GDS-2000HD/HG series, tools such as serial bus decoding and FFT analysis take care of the common debugging tasks. You operate all of it on a 10.1" capacitive touchscreen running Android, so you can open documents, PDFs and videos directly on the instrument, and screen recording and web control let you share or follow a measurement remotely. The USB and LAN interfaces cover data transfer and remote control from a PC. In addition, the oscilloscope can be powered over USB-C, so it also runs from a suitable power bank when you take it out of the lab.
Model overview
| Model | Bandwidth | Rise time | Memory depth | Built-in function generator | Price |
|---|---|---|---|---|---|
| GDS-2254HD | 250 MHz | 1.75 ns | 100 Mpts | No |
|
| GDS-2254HG | 250 MHz | 1.75 ns | 100 Mpts | Yes |
|
| GDS-2354HD | 350 MHz | 1 ns | 500 Mpts (divided by the number of active channels) | No |
|
| GDS-2354HG | 350 MHz | 1 ns | 500 Mpts (divided by the number of active channels) | Yes |
|
| GDS-2504HD | 500 MHz | 0.7 ns | 500 Mpts (divided by the number of active channels) | No |
|
| GDS-2504HG | 500 MHz | 0.7 ns | 500 Mpts (divided by the number of active channels) | Yes |
Specifications
| Channels | 4 |
| Sample rate | 2.5 GS/s (2 active channels) |
| Vertical resolution | 12 bits |
| Vertical scale | 500 µV/div - 10 V/div |
| Horizontal scale | 500 ps/div - 1000 s/div |
| Input impedance | 1 MΩ ± 2% |
| Interfaces | USB Host, USB Device, LAN, USB-C (power) |
| Display | 10.1" TFT LCD (1024x600) |
| Dimensions | 325 x 209.5 x 111.5 mm |
| Weight | 3.2 kg |
Accessories
The GDS-2354HD comes with:
- 1x Power cord
- 1x USB cable
- 4x Probe
Pros and cons
- USB-C powered
- Good sample rate
- 500Mpts total memory depth
- Android OS
- No possibility to analyse digital signals
