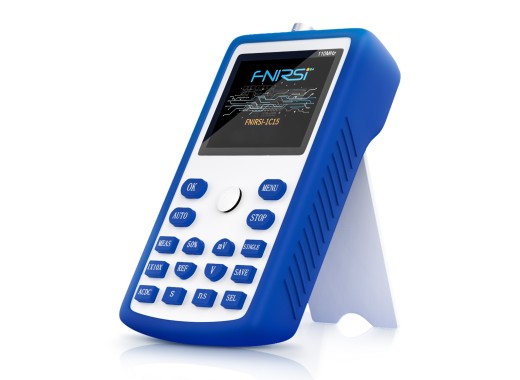

The Fnirsi 1C15 is a 1 channel handheld oscilloscope with a bandwidth of 110MHz for an affordable price. It features a 500MS/s sample rate as well as a memory depth of 12kpts. It's possible to measure voltages up to 400V by setting the oscilloscope and the included probe to 10X. This range can be useful when testing for example household voltages. The 1C15 also allows for an auto measurement by using the one-key auto function. In addition, the 1C15 weighs only 209g and features a 2.4" LCD display. The internal battery can be charged via the included micro-USB cable and should last for at least 10 hours when fully charged.
Specifications
| Bandwidth | 110 MHz |
| Channels | 1 |
| Memory depth | 12 kpts |
| Sample rate | 500 MS/s |
| Vertical scale | 20 mV/div - 100 V/div |
| Horizontal scale | 5 ns/div - 10 s/div |
| Interfaces | Micro-USB |
| Display | 2.4" LCD (320x240) |
| Battery | 3000 mAh, 10 hours |
| Dimensions | 130 x 76 x 27 mm |
| Weight | 206 g |
Accessories
The Fnirsi 1C15 includes:
- 1x Alligator clip probe
- 1x P6100 High Voltage Probe
- 1x micro-USB charging cable
Pros and cons
- Not suitable for accurate measurements
